ABB 2CPX044130R9999 Interior fitting module - EN 61439-3
Part Number: 2CPX044130R9999
Quick Summary
Interior fitting module for CombiLine distributors enables compact N/PE busbar and terminal assembly in modular panels. Engineers often struggle with space constraints and complex wiring when expanding power distribution in automation cells. This unit carries DIN EN 61439-3 and DIN EN 61439-2 compliance, CE conformity, and RoHS/REACH declarations, ensuring regulatory alignment across installations. Built with a 750 mm usable width and 108 DIN Place Units, it supports horizontal busbar alignment and simple expansion as demands grow. The combination of RoHS and REACH compliance reduces compliance risk, while the robust enclosure and compatibility with 2-pole busbars improves workmanship and lifecycle value for industrial facilities.
Product Information
Extended Description

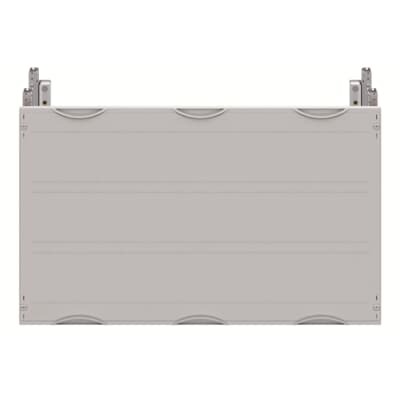

2CPX044130R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for N/PE busbar and terminals, Grid unit 3 GU = 450 mm, panel width 3 = 750 mm, 108 Space units, , usuable width of 750 mm, unequipped for the installation of , for busbar system 2-pole, Busbar alignment: horizontal, with busbar holders ZX563, for maximum 2 Cu busbars, (busbars must be ordered separately), rated current maximum 1000 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 400 mm
Rated Operational Voltage
Maximum 400 V
Rated Current (In)
1000 A
Number of Poles
2P
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
Accessories Available
Yes
DIN Place Units
108
Module Function
N/PE busbar and terminals
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
d5857305-9028-4b0f-8fa4-bcd1ee074547 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
450 mm
Product Net Depth / Length
400 mm
Section Width
3
Product Net Weight
3.539 kg
Built-In Depth (t2)
400 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.681 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
High current capacity and compact footprint: Rated at 1000 A with a 750 mm width, 450 mm height, and 400 mm depth, the module supports heavy power loads without expanding cabinet footprints. Business impact: maximizes cabinet utilization and reduces overall system enclosure size, enabling efficient layouts in automated plants. Application: suitable for large-scale motor control centers and distribution panels in manufacturing lines. Busbar compatibility and installation flexibility: Supports 2-pole busbars with a horizontal alignment and ZX563 busbar holders; up to two Cu busbars with space for future expansion. Business impact: simplifies wiring, shortens installation time, and enhances serviceability. Application: modular switchgear assemblies and CombiLine configurations where future upgrades are anticipated. Modular space and built-in depth: 108 DIN Place Units with a usable width of 750 mm and a built-in depth of 400 mm enable scalable capacity in existing cabinets. Business impact: enables stepwise capacity upgrades without redesigning enclosures. Application: retrofits and new builds requiring scalable space planning. Compliance and sustainability: RoHS and REACH declarations, plus DIN EN 61439-3/2 standards, reduce regulatory risk. Business impact: supports audits and supplier qualification while ensuring environmental responsibility. Application: regulated industrial environments and projects with stringent compliance requirements. Installation and maintenance: Comprehensive mounting instructions ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N, and availability of accessories streamline installation. Business impact: lowers labor costs and accelerates commissioning. Application: field deployment across automation facilities. Weight and packaging: Net weight 3.539 kg; packed weight 3.681 kg; color Light grey (RAL 7035). Business impact: predictable handling and shipping, aiding logistics and installation planning. Application: panel builders and integrators handling multiple units per job.
