ABB 2CPX044131R9999 Interior fitting module - DIN EN 61439-3
Part Number: 2CPX044131R9999
Quick Summary
ABB 2CPX044131R9999 Interior fitting module is a modular distribution panel component designed for N/PE busbars and terminals within the CombiLine system. Engineers encounter space constraints and wiring complexity when expanding power distribution, and a configurable interior module helps maximize cabinet capacity without rework. It carries DIN EN 61439-3 with CE declarations, RoHS compliance, and REACH/SCIP registrations, ensuring regulatory alignment in modern plants. The horizontal busbar alignment and ZX563 busbar holders support precise busbar positioning, while the 48 DIN place units enable scalable capacity planning. This solution delivers measurable business value by expediting installation, reducing field wiring, and ensuring robust compliance for high-current, up to 1000 A at 400 V applications.
Product Information
Extended Description

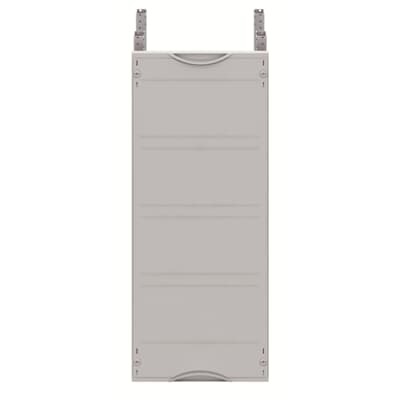

2CPX044131R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for N/PE busbar and terminals, Grid unit 4 GU = 600 mm, panel width 1 = 250 mm, 48 Space units, , usuable width of 250 mm, unequipped for the installation of , for busbar system 2-pole, Busbar alignment: horizontal, with busbar holders ZX563, for maximum 2 Cu busbars, (busbars must be ordered separately), rated current maximum 1000 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 400 mm
Rated Operational Voltage
Maximum 400 V
Rated Current (In)
1000 A
Number of Poles
2P
Enclosure Type
Interior fitting module
Enclosure Type of Height
0
Accessories Available
Yes
DIN Place Units
48
Module Function
N/PE busbar and terminals
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
62788c84-72a2-413a-9f1a-e142c5119273 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
600 mm
Product Net Depth / Length
400 mm
Section Width
1
Product Net Weight
2.263 kg
Built-In Depth (t2)
400 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.354 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
