ABB 2CPX044132R9999 Interior Fitting Module - DIN EN 61439-3
Part Number: 2CPX044132R9999
Quick Summary
ABB 2CPX044132R9999 Interior Fitting Module is designed to streamline CombiLine modular distribution panels for N/PE busbar and terminals. In practice, it simplifies field wiring, enabling scalable, maintainable power layouts within cabinet spaces. Many teams struggle with expansion, spares management, and consistent assembly; this module provides standardized dimensions and adapters to accelerate upgrades with minimal risk. It complies with DIN EN 61439-2/3 and CE conformity, and RoHS/REACH declarations offer robust regulatory assurance. Used in demanding industrial environments, it supports up to 1000 A at 400 V and 96 DIN places, enabling reliable distribution in a compact footprint. The result is improved installation quality, reduced downtime, and a clearer path to lower total cost of ownership.
Product Information
Extended Description

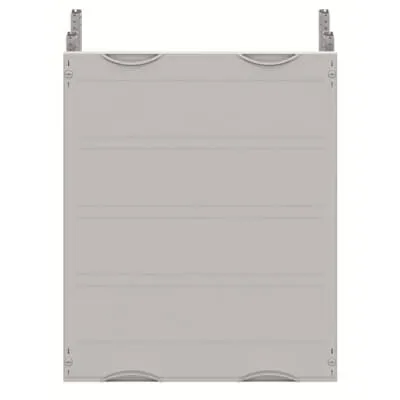

2CPX044132R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for N/PE busbar and terminals, Grid unit 4 GU = 600 mm, panel width 2 = 500 mm, 96 Space units, , usuable width of 500 mm, unequipped for the installation of , for busbar system 2-pole, Busbar alignment: horizontal, with busbar holders ZX563, for maximum 2 Cu busbars, (busbars must be ordered separately), rated current maximum 1000 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 400 mm
Rated Operational Voltage
Maximum 400 V
Rated Current (In)
1000 A
Number of Poles
2P
Enclosure Type
Interior fitting module
Enclosure Type of Height
0
Accessories Available
Yes
DIN Place Units
96
Module Function
N/PE busbar and terminals
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
19ed4795-d885-4482-b35c-bdda60802556 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
600 mm
Product Net Depth / Length
400 mm
Section Width
2
Product Net Weight
3.379 kg
Built-In Depth (t2)
400 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.514 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: 2-pole busbar and terminals within an interior fitting module. Business Impact: Supports high-current distribution with a streamlined, modular footprint, reducing panel count and installation time. Application: Ideal for CombiLine distribution panels where N/PE busbar routing is required. Feature: Rated current up to 1000 A and maximum 400 V. Business Impact: Safe handling of heavy loads while maintaining regulatory compliance; minimizes heat rise and sequence delays during commissioning. Application: Heavy-power panel sections in manufacturing lines and data centers. Feature: 96 DIN place units with 500 mm width and 600 mm height. Business Impact: Optimizes space planning and future expansion without rework; simplifies component stocking. Application: Medium to large switchgear assemblies. Feature: Busbar alignment horizontal with ZX563 holders; 2 Cu busbars maximum. Business Impact: Enhances mechanical stability and simplifies wiring routes; reduces maintenance effort. Application: Retrofit projects and new builds requiring clean busbar layouts. Feature: RoHS, REACH, and SCIP declarations; CE conformity. Business Impact: Regulatory risk mitigation and easier supplier audits; supports sustainability reporting. Application: Global production environments with strict compliance requirements. Feature: Construction in light grey plastic covers and closed-design enclosure. Business Impact: Improved durability and environmental protection with minimal maintenance; easier cleaning in harsh environments. Application: Enclosures in factory floors and control rooms. Feature: 96 DIN places and built-in depth of 400 mm; N/PE busbar compatibility. Business Impact: Predictable space utilization and straightforward integration with existing CombiLine modules. Application: Modular distribution panels where scaling and routine upgrades are anticipated.
Get a Quick Quote for a ABB 2CPX044132R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044132R9999?
Enquire Now
FAQs
Yes. This interior fitting module is designed for N/PE busbars with a 2-pole configuration, horizontal busbar alignment, and ZX563 busbar holders. It accommodates up to two copper busbars and fits within a 96 DIN unit footprint, supporting seamless integration into CombiLine modular panels.
Key specs include a maximum operating voltage of 400 V, rated current up to 1000 A, 2P poles, 96 DIN place units, width 500 mm, height 600 mm, and depth 400 mm. The enclosure is an interior fitting module with light grey covers and built-in depth of 400 mm, designed for modular distribution panels.
Yes. The module carries CE conformity under the EU Declaration of Conformity for the CombiLine distribution system, and complies with RoHS and REACH requirements. It also has SCIP registration, supporting responsible sourcing and regulatory reporting for industrial manufacturing.
This module is used in CombiLine modular distribution panels to organize N/PE busbar and terminal connections. It is suited for factory power distributions, switchgear assemblies, and other industrial control panels where reliable current handling up to 1000 A at 400 V is required, with scalable capacity via 96 DIN spaces.
The standardized design accelerates installation, reduces field wiring errors, and simplifies future expansions, lowering downtime during upgrades. Its high current rating and modular footprint improve overall panel efficiency, reduce replacement costs, and support long-term total cost of ownership in energy-intensive environments.
