2CPX044136R9999
Part Number: 2CPX044136R9999
Product Information
Extended Description

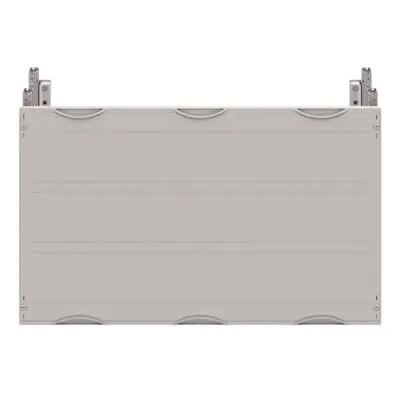

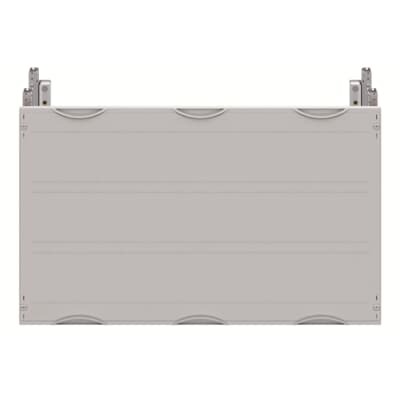

2CPX044136R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for N/PE busbar and terminals, Grid unit 3 GU = 450 mm, panel width 3 = 750 mm, 108 Space units, , usuable width of 750 mm, unequipped for the installation of , for busbar system 2-pole, Busbar alignment: horizontal, with busbar holders ZX563, for maximum 2 Cu busbars, (busbars must be ordered separately), rated current maximum 1000 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 400 mm
Rated Operational Voltage
Maximum 400 V
Rated Current (In)
1000 A
Number of Poles
2P
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
Accessories Available
Yes
DIN Place Units
108
Module Function
N/PE busbar and terminals
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
1fa767bb-3529-41ca-b70d-d078623a6431 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
450 mm
Product Net Depth / Length
400 mm
Section Width
3
Product Net Weight
2.638 kg
Built-In Depth (t2)
400 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.744 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
