ABB 2CPX044162R9999 Interior fitting module 24 DIN, 1000 A
Part Number: 2CPX044162R9999
Quick Summary
ABB 2CPX044162R9999 interior fitting module for CombiLine busbar distributions delivers 1P N/PE capability in compact 24 DIN panels. This solution addresses space constraints and wiring complexity typical of modular power distribution enclosures. It complies with key standards such as DIN EN 61439-3 and CE, while RoHS and REACH declarations provide regulatory assurance. With 24 DIN places, 400 V operating voltage, and a 1000 A rating, it enables scalable, safe energy distribution while reducing assembly time and maintenance effort in industrial cabinets.
Product Information
Extended Description

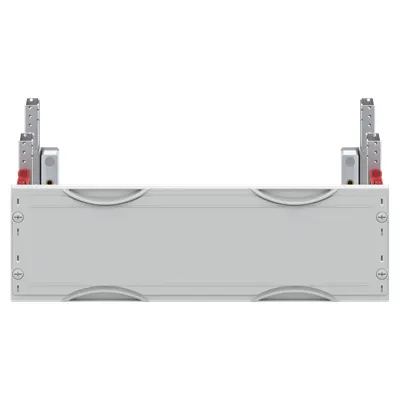

2CPX044162R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for N/PE busbar and terminals, Grid unit 1 GU = 150 mm, panel width 2 = 500 mm, 24 Space units, , usuable width of 500 mm, unequipped for the installation of , for busbar system 1-pole, Busbar alignment: horizontal, with busbar holders ZX563, for maximum 1 Cu busbars, (busbars must be ordered separately), rated current maximum 1000 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 400 mm
Rated Operational Voltage
Maximum 400 V
Rated Current (In)
1000 A
Number of Poles
1P
Enclosure Type
Interior fitting module
Enclosure Type of Height
0000
Accessories Available
Yes
DIN Place Units
24
Module Function
N/PE busbar and terminals
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
150 mm
Product Net Depth / Length
400 mm
Section Width
2
Product Net Weight
1.308 kg
Built-In Depth (t2)
400 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.36 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction-MBX170-370NPE_180-380P
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: High current rating up to 1000 A. Business Impact: Supports heavy-duty main feeders and minimizes the need for parallel devices, reducing panel footprint. Application: Large industrial machines and process facilities requiring robust power distribution. Feature: N/PE busbar and terminals integrated module. Business Impact: Simplifies wiring, improves fault tracing, and speeds up commissioning. Application: CombiLine modular distribution panels in switchgear closets. Feature: 24 DIN place units with horizontal busbar alignment. Business Impact: Maximizes usable space while keeping a clean, organized layout; improves future expansion. Application: Mid-sized control cabinets and MCCs needing modular scalability. Feature: Durable enclosure with 500 mm width and 150 mm height footprint. Business Impact: Compact footprint fits tight enclosures while delivering full 1P busbar functionality. Application: Enclosures with constrained depth and need for easy maintenance. Feature: RoHS and REACH compliant with EU declarations. Business Impact: Reduces regulatory and sourcing risk, supports sustainable procurement. Application: Automotive, food and beverage, and general industrial equipment where compliance matters. Feature: DIN EN 61439-3 / 61439-2 compliant with CE declaration. Business Impact: Ensures safety and interoperability within standardized distribution systems; eases certification audits. Application: Global industrial installations requiring standardized components. Feature: Busbar alignment ZX563 supports secure electrical connections; notes indicate busbars must be ordered separately. Business Impact: Improves reliability in high-current paths; avoids misalignment during assembly. Application: Comprehensive CombiLine busbar systems in modular panels.
