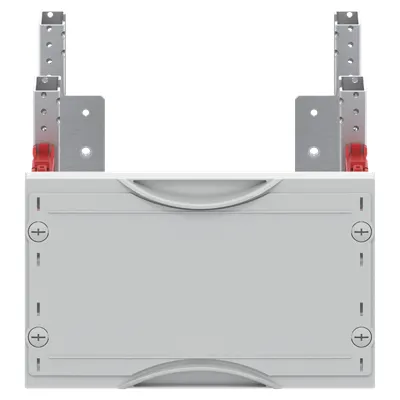

ABB 2CPX044164R9999 Interior Fitting Module - DIN EN 61439-3
Part Number: 2CPX044164R9999
Quick Summary
ABB 2CPX044164R9999 is an interior fitting module for CombiLine distribution panels. Engineered to simplify N/PE busbar organization and accelerate panel assembly, it minimizes space while maximizing reliability. The design aligns with DIN EN 61439-2/3, CE conformity, RoHS, and REACH declarations, ensuring regulatory compliance in demanding control environments. With 12 DIN place units, a 1P configuration, and a 1000 A rating, this module supports scalable, future-proof power distribution. The built-in 90-degree closure and light grey RAL 7035 cover protect components while maintaining a clean cabinet appearance. End-user benefits include reduced downtime during modifications, easier spare parts planning, and seamless integration with ABB CombiLine accessories for faster commissioning.
Product Information
Extended Description
2CPX044164R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for N/PE busbar and terminals, Grid unit 1 GU = 150 mm, panel width 1 = 250 mm, 12 Space units, , usuable width of 250 mm, unequipped for the installation of , for busbar system 1-pole, Busbar alignment: horizontal, for maximum 1 Cu busbars, (busbars must be ordered separately), rated current maximum 1000 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 400 mm
Rated Operational Voltage
Maximum 400 V
Rated Current (In)
1000 A
Number of Poles
1P
Enclosure Type
Interior fitting module
Enclosure Type of Height
0000
Accessories Available
Yes
DIN Place Units
12
Module Function
N/PE busbar and terminals
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
150 mm
Product Net Depth / Length
400 mm
Section Width
1
Product Net Weight
0.592 kg
Built-In Depth (t2)
400 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.616 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction-MBX170-370NPE_180-380P
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Rated Operating Voltage and Current. Business Impact: Supports up to 400 V and 1000 A, enabling a single-stage main distribution in compact switchgear. Application: Ideal for 1P N/PE busbar systems within ABB CombiLine modular panels. Feature: 12 DIN place units with 1P configuration. Business Impact: Maximizes internal density, reducing wiring complexity and cabinet depth. Application: Fits 250 mm wide, 400 mm deep layouts for tidy, scalable power distribution. Feature: N/PE busbar and terminals integration. Business Impact: Enhances fault isolation and maintenance access while keeping live parts neatly separated. Application: Suited for interior fitting modules that manage horizontal busbar alignment. Feature: RoHS and REACH compliance with CE declaration. Business Impact: Lowers regulatory risk and simplifies procurement across EU supply chains. Application: Critical for process automation and energy management environments. Feature: Durable cover, 90-degree closure, light grey finish. Business Impact: Protects components from dust and contact while enabling straightforward service. Application: Desired in cabinets requiring robust enclosure aesthetics in manufacturing and data-center-adjacent spaces. Feature: Compact footprint and light weight. Business Impact: Reduces shipping, handling, and panel depth while preserving performance. Application: Fits standard 400 mm deep enclosures and supports scalable automation projects.
Get a Quick Quote for a ABB 2CPX044164R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044164R9999?
Enquire Now
FAQs
This interior fitting module is designed for ABB CombiLine modular distribution panels and supports N/PE busbar and terminals. It uses a 250 mm width and 400 mm depth footprint with 12 DIN spaces, making it ideal for scalable, high-current cabinet configurations.
The module is rated for up to 400 V and 1000 A in a 1P configuration. Its footprint is 250 mm wide by 150 mm high and 400 mm deep, with a net weight of approximately 0.592 kg.
Yes. It carries CE conformity, RoHS compliance, and REACH declarations, with the product designed to DIN EN 61439-2/3 requirements for distribution panels and related assemblies.
Follow the ABB mounting instruction MBX170-370NPE_180-380P to ensure proper fit, wiring clearance, and safe busbar access within the CombiLine assembly.
It offers a compact, high-current solution with 12 DIN spaces, improving space efficiency and wiring organization. The module also supports regulatory compliance, reduces commissioning time, and lowers lifecycle costs through durable construction and compatibility with ABB CombiLine accessories.
