ABB 2CPX044166R9999 Interior Fitting Module - DIN EN 61439-3
Part Number: 2CPX044166R9999
Quick Summary
ABB 2CPX044166R9999 interior fitting module enables N/PE busbar distribution in CombiLine modular panels, delivering a compact, service-friendly solution for panel builders. In the field, engineers routinely face tight cabinet real estate, complex wiring, and the need to adapt layouts as systems evolve. This product complies with DIN EN 61439-3 and DIN EN 61439-2, carries CE conformity, and meets RoHS and REACH requirements for European manufacturing and export. Its 750 mm wide, 150 mm high, 400 mm deep footprint supports scalable configurations while offering 36 DIN place units and horizontal busbar alignment. The result is faster installation, improved safety, and reduced procurement cycles across automation, process, and machine-building environments.
Product Information
Extended Description

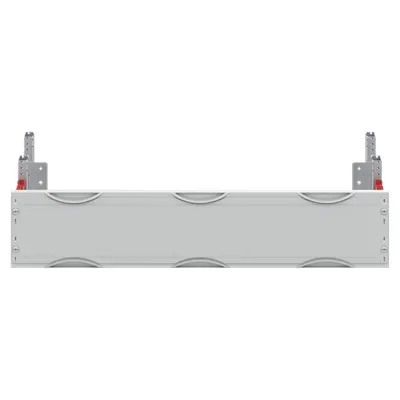

2CPX044166R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for N/PE busbar and terminals, Grid unit 1 GU = 150 mm, panel width 3 = 750 mm, 36 Space units, , usuable width of 750 mm, unequipped for the installation of , for busbar system 1-pole, Busbar alignment: horizontal, for maximum 1 Cu busbars, (busbars must be ordered separately), rated current maximum 1000 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 400 mm
Rated Operational Voltage
Maximum 400 V
Rated Current (In)
1000 A
Number of Poles
1P
Enclosure Type
Interior fitting module
Enclosure Type of Height
0000
Accessories Available
Yes
DIN Place Units
36
Module Function
N/PE busbar and terminals
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
150 mm
Product Net Depth / Length
400 mm
Section Width
3
Product Net Weight
0.987 kg
Built-In Depth (t2)
400 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.026 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction-MBX170-370NPE_180-380P
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Rated for up to 1000 A at 400 V in a 1P configuration, the module delivers robust power distribution within a compact interior fitting unit. Business impact: it minimizes the need for parallel feeders, reduces wiring complexity, and shortens installation time, delivering lower capital expenditure and faster time-to-value on new lines. Application: ideal for main incoming feeds and local distributions in CombiLine panels used in machine-building, process automation, and industrial retrofit projects. Feature: 750 mm width, 150 mm height, and 400 mm depth with 36 DIN place units. Business impact: scalable capacity planning, predictable enclosure fit, and straightforward field upgrades without cabinet replacement or major rewiring. Application: supports modular layouts in 750 mm wide cabinets for 1-pole N/PE busbar configurations, enabling efficient wiring, orderly terminations, and future expansion within mid-size distribution panels. Feature: N/PE busbar and terminals integration with horizontal busbar alignment; busbars must be ordered separately. Business impact: procurement flexibility with plug-and-play assembly, reduced stock variety, and on-site customization to meet evolving electrical schematics. Application: particularly effective in CombiLine distributor panels where the busbar segment is installed on site, enabling precise alignment and clean cable routing. Feature: Closed, light-grey plastic cover (RAL 7035) with a 90-degree closure improves dust protection, mechanical safety, and long-term enclosure performance. Business impact: supports regulatory compliance, minimizes maintenance cycles, and preserves insulation integrity under harsh industrial conditions. Application: ideal for factory floors, assemblies, and panel houses requiring durable enclosure protection for N/PE busbar assemblies. Feature: RoHS and REACH compliance and CE Declaration of Conformity ensure regulatory alignment and supply-chain confidence. Business impact: reduces risk during audits, simplifies supplier qualification, and enables smoother cross-border procurement across European markets. Application: essential for OEMs, panel builders, and system integrators needing traceable material compliance and harmonized standards in automation installations.
Get a Quick Quote for a ABB 2CPX044166R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044166R9999?
Enquire Now
FAQs
The module is designed as an interior fitting unit for CombiLine distribution panels, supporting horizontal busbar alignment and 1P N/PE busbar configurations. It accommodates 36 DIN place units within a 750 mm wide footprint and requires that the busbars be ordered separately. This combination simplifies field upgrades and reduces the risk of misfit during panel builds.
Key specs include a rated operational voltage of up to 400 V and a maximum rated current of 1000 A in a 1P arrangement. The product footprint is 750 mm (width) by 150 mm (height) by 400 mm (depth), with 36 DIN places. These figures guide load calculations, cable routing, and spare-part planning for high-current, compact distribution needs.
Yes. The module complies with DIN EN 61439-3 and DIN EN 61439-2, carries CE conformity, and adheres to RoHS and REACH declarations. WEEE considerations are noted as not in scope, and the product aligns with material and environmental regulations common in European OEMs and panel builders.
N/PE busbar and terminal integration enables cleaner terminations and easier field modifications, reducing wiring complexity and downtime during upgrades. The option to order busbars separately provides customization flexibility, aiding in spare-part management and minimizing stock holding costs over the system's lifecycle.
Leverage the 36 DIN places and 750x150x400 mm footprint to maximize cabinet density while maintaining accessible wiring. The 1P, 400 V rating supports scalable distribution for high-current loads. Combined with RoHS/REACH/CE compliance, this reduces risk during audits and accelerates project timelines, improving total cost of ownership for automation and machine-building projects.
