ABB 2CPX044167R9999 Interior fitting module - DIN EN 61439
Part Number: 2CPX044167R9999
Quick Summary
ABB 2CPX044167R9999 interior fitting module enables N/PE busbar and terminals in modular distribution panels for industrial power distribution. Design teams often struggle with space constraints, cabinet integration, and the risk of selecting noncompliant components. The design aligns with standards such as DIN EN 61439-2/3, CE conformity, RoHS, and REACH declarations, reinforcing regulatory confidence. Its N/PE busbar and terminal focus makes installation predictable within CombiLine modular panels. With 12 DIN place units, a 1000 A rating, and horizontal busbar alignment, it enables scalable, efficient power distribution across facilities. This combination supports faster procurement cycles and lower lifecycle costs for engineers and project teams.
Product Information
Extended Description

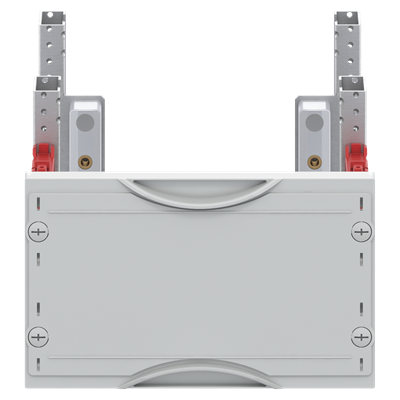

2CPX044167R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for N/PE busbar and terminals, Grid unit 1 GU = 150 mm, panel width 1 = 250 mm, 12 Space units, , usuable width of 250 mm, unequipped for the installation of , for busbar system 1-pole, Busbar alignment: horizontal, with busbar holders ZX563, for maximum 1 Cu busbars, (busbars must be ordered separately), rated current maximum 1000 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 400 mm
Rated Operational Voltage
Maximum 400 V
Rated Current (In)
1000 A
Number of Poles
1P
Enclosure Type
Interior fitting module
Enclosure Type of Height
0000
Accessories Available
Yes
DIN Place Units
12
Module Function
N/PE busbar and terminals
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
150 mm
Product Net Depth / Length
400 mm
Section Width
1
Product Net Weight
1.043 kg
Built-In Depth (t2)
400 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.085 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction-MBX170-370NPE_180-380P
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Rated operational voltage up to 400 V translates to compatibility with standard industrial mains, reducing panel complexity and risk of overvoltage. This also supports safer, more reliable power delivery in compact assemblies. The result is fewer field adjustments and quicker safe energization. 12 DIN place units provide flexible busbar and terminal arrangements, enabling scalable configurations without full panel redesign. Business impact includes reduced spare parts and faster changeovers as your line evolves. This flexibility supports future-proofing and smoother phased upgrades. The 1P distribution handles up to 1000 A in a compact footprint, improving space efficiency while meeting high load demands. Horizontal busbar alignment simplifies conductor routing and enhances electrical integrity during installation. The design also eases integration with ZX563 busbar holders and standard CombiLine accessories. RoHS, REACH, and CE compliance ensure regulatory continuity and sustainability across projects. This helps procurement teams maintain supplier confidence and long term cost savings. Mounting instructions MBX170-370NPE_180-380P and ZX563 busbar holders enable a reliable, field ready fitment. The WEEE status and EU declarations support responsible disposal planning and lifecycle management. Built-in safety closures and a closed cover design reduce risk during maintenance in live environments. Overall, the module supports modular expansion, reduces panel depth constraints, and aligns with ETIM and eClass classifications for easier cataloging. It remains a practical, standards-aligned choice for modern power distribution projects.
