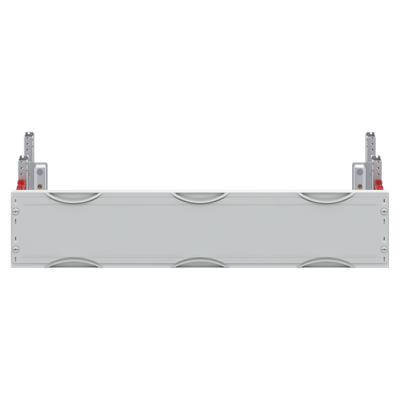

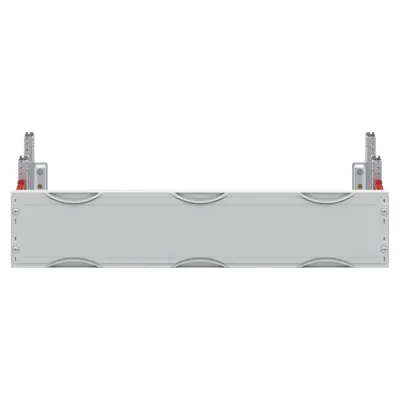

ABB 2CPX044169R9999 Interior Fitting Module - DIN EN 61439-3
Part Number: 2CPX044169R9999
Quick Summary
ABB 2CPX044169R9999 Interior Fitting Module enables modular N/PE busbar distribution in CombiLine panels. Engineers benefit from a plug-and-play solution that reduces installation time and frees up valuable enclosure space. This product complies with DIN EN 61439-3 and CE requirements, with RoHS and REACH declarations supporting safe, regulation-compliant operation. As part of ABB's CombiLine family, it offers scalable capacity, easy compatibility with standard copper busbars, and a straightforward path to faster panel assembly and lower total cost of ownership. Its 36 DIN place units, 1P configuration, and 1000 A rating address high-current distribution needs in power management and distribution applications.
Product Information
Extended Description
2CPX044169R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for N/PE busbar and terminals, Grid unit 1 GU = 150 mm, panel width 3 = 750 mm, 36 Space units, , usuable width of 750 mm, unequipped for the installation of , for busbar system 1-pole, Busbar alignment: horizontal, with busbar holders ZX563, for maximum 1 Cu busbars, (busbars must be ordered separately), rated current maximum 1000 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 400 mm
Rated Operational Voltage
Maximum 400 V
Rated Current (In)
1000 A
Number of Poles
1P
Enclosure Type
Interior fitting module
Enclosure Type of Height
0000
Accessories Available
Yes
DIN Place Units
36
Module Function
N/PE busbar and terminals
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
150 mm
Product Net Depth / Length
400 mm
Section Width
3
Product Net Weight
1.3 kg
Built-In Depth (t2)
400 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.352 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction-MBX170-370NPE_180-380P
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
High-current capability up to 1000 A enables direct distribution within a cabinet, reducing the need for external busbar assemblies and helping minimize heat load and cabinet footprint. This translates to a more compact control panel and faster commissioning in demanding manufacturing environments. The module leverages 36 DIN place units and a 750 mm panel width, delivering dense, scalable layouts that support future expansion without costly reworks. By focusing on N/PE busbar and terminals, it simplifies conductor routing and reduces wiring complexity, resulting in shorter installation times and lower labor costs. Horizontal busbar alignment with ZX563 holders ensures predictable current paths, easing maintenance and improving safety during updates or troubleshooting. The enclosure design — 400 mm built-in depth, closed cover, and light grey finish — standardizes cabinet aesthetics and simplifies documentation for audits and compliance. RoHS, REACH, and CE declarations provide regulatory confidence for regulated industries, while compatibility with CombiLine panels offers a clear upgrade path for existing installations. Overall, the solution delivers a repeatable, compliant, and cost-effective approach to high-current interior distribution.
Get a Quick Quote for a ABB 2CPX044169R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044169R9999?
Enquire Now
FAQs
Install per the mounting instructions MBX170-370NPE_180-380P. The unit provides 36 DIN places in a 750 mm wide, 150 mm high, 400 mm deep interior fitting module. Busbars must be ordered separately, and use ZX563 busbar holders for horizontal alignment. Ensure correct copper busbar sizing and solid grounding connections during assembly.
The module supports up to 400 V and a rated current of 1000 A in a 1P configuration. It is designed for N/PE busbar and terminals inside CombiLine interior panels, enabling high-current distribution within a compact footprint.
Yes. It includes a CE Declaration of Conformity and RoHS status per EU Directive 2011/65/EU with Amendment 2015/863, plus a REACH declaration confirming no substances above 0.1 mass percentage. WEEE classification indicates the product is not within WEEE scope. These declarations support regulatory compliance across regulated markets.
The module provides 36 DIN place units within a 750 mm wide, 150 mm high, 400 mm deep interior fitting enclosure. It is designed for horizontal busbar alignment and supports 1P operation, suitable for compact, high-current distribution setups in control cabinets.
Ideal for CombiLine interior distribution panels in industrial automation and power management. It supports N/PE busbar and terminals with a 1P configuration, enabling high-current, space-efficient distribution in machine centers, processing lines, and panel builders seeking scalable, compliant interior fitting solutions.
