ABB 2CPX044170R9999 Meter device - DIN EN 61439-3
Part Number: 2CPX044170R9999
Quick Summary
ABB 2CPX044170R9999 Meter device is an interior fitting module designed for CombiLine modular distribution panels to house a 3-phase metering solution. In practice, engineers often struggle with tight footprints, dense wiring, and time-consuming enclosure assembly. This product adheres to critical standards to simplify compliance and procurement, including DIN EN 61439-3, CE conformity, and RoHS compliance, while delivering a robust grey enclosure for high-use industrial cabinets. By combining 24 DIN place units with a 2 GU grid and 225 mm built-in depth, it enables scalable meter distribution in compact spaces. The result is faster installation, lower lifecycle risk, and a streamlined supply chain for electrical installations in manufacturing environments.
Product Information
Extended Description

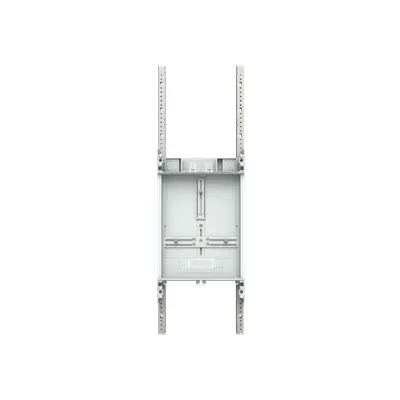

2CPX044170R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Meter device with 3 point fixing, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, usuable as of the cabinet depth of 225 mm
Model Number
1-story
Number of Phases
3
Number of TSG Panels
1
Enclosure Type
Interior fitting module
Protection Type
None
DIN Place Units
24
Module Function
Meter device with 3 point fixing
RAL Number
RAL 7035 - Light Grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
225 mm
Section Width
1
Product Net Weight
1.613 kg
Built-In Depth (t2)
225 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.68 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
ETIM 8
EC000068 - Meter board
ETIM 9
EC000068 - Meter board
eClass
V11.0 : 27142417
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature → Business Impact → Application: The interior fitting module design supports 24 DIN place units, enabling high-density meter layouts and reduced cabinet depth, which translates to faster wiring, easier maintenance, and lower enclosure costs for 3-phase metering in compact control cabinets. Application: CombiLine distribution panels where space is at a premium and precise organization of metering hardware is required. Feature → Business Impact → Application: 3 point fixing provides secure mounting for dependable operation in vibration-prone environments, improving reliability in critical metering applications with minimal disturbance during servicing. Application: Industrial panels in food processing or packaging lines where service access must remain swift. Feature → Business Impact → Application: 90-degree press and turn closure simplifies lid operation and seal integrity, reducing installation time and leakage risk in climate-controlled cabinets. Application: Meter boards exposed to frequent door openings. Feature → Business Impact → Application: RAL 7035 light grey enclosure ensures consistent aesthetics and compatibility with surrounding control gear, aiding in standardization across multiple lines. Application: New installations or retrofits in existing CombiLine systems. Feature → Business Impact → Application: RoHS and REACH declarations minimize regulatory risk and expedite procurement for global supply chains. Application: Global manufacturing facilities prioritizing sustainability and compliant sourcing. This module’s dimensions—250 mm width, 300 mm height, 225 mm depth—offer a predictable footprint for modular expansions, while the built-in depth aligns with common cabinet configurations. The result is a measurable improvement in installation efficiency and long-term maintenance planning.
Get a Quick Quote for a ABB 2CPX044170R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044170R9999?
Enquire Now
FAQs
The 2CPX044170R9999 is designed as an interior fitting module for CombiLine modular distribution panels, supporting 24 DIN place units and a 2 GU grid (300 mm) to optimize metering density while maintaining standard mounting and enclosure interfaces.
Plan for a 250 mm panel width, 300 mm height, and 225 mm built-in depth, with a 3-point fixing method and 90-degree closure for quick access. The enclosure uses RAL 7035 light grey plastic covers to ensure a clean, compliant installation.
Yes. The product is specified for DIN EN 61439-3 and DIN EN 61439-2, and carries a CE Declaration of Conformity, along with RoHS compliance to meet EU restrictions on hazardous substances.
Yes. The built-in depth and DIN placement, together with 3-point fixing and a modular CombiLine fit, allow integration into existing compact cabinets without significant redesign, enabling scalable metering within a standard footprint.
The module’s RoHS and REACH declarations reduce regulatory risk, while its standardized dimensions and ETIM/eClass classifications simplify procurement, maintenance planning, and long-term support for industrial metering deployments.
