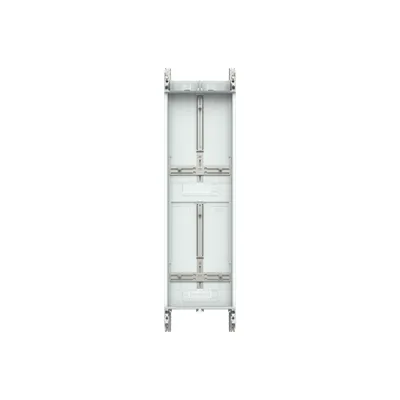

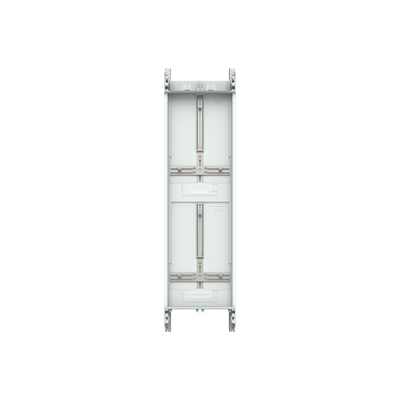

ABB 2CPX044172R9999 Meter Device - DIN EN 61439-3
Part Number: 2CPX044172R9999
Quick Summary
ABB 2CPX044172R9999 meter device provides a compact interior fitting module for modular distribution panels, designed around 60 DIN place units in a 750 mm by 250 mm footprint. In tight cabinet spaces, engineers struggle with space optimization, cable routing, and future expansion, increasing project risk and costs. This module is designed to meet DIN EN 61439-3 and DIN EN 61439-2, carries CE declarations, and is RoHS compliant, ensuring regulatory-ready deployments. Paired with ABB CombiLine systems, it enables scalable meter management with easy retrofit potential while maintaining robust protection and a clean aesthetic (RAL 7035). This combination supports faster commissioning, reduces field rework, and delivers predictable lifecycle costs for utilities and industrial facilities.
Product Information
Extended Description
2CPX044172R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Meter device with 3 point fixing, Grid unit 5 GU = 750 mm, panel width 1 = 250 mm, 60 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, usuable as of the cabinet depth of 225 mm
Model Number
2-story
Number of Phases
3
Number of TSG Panels
0
Enclosure Type
Interior fitting module
Protection Type
None
DIN Place Units
60
Module Function
Meter device with 3 point fixing
RAL Number
RAL 7035 - Light Grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
750 mm
Product Net Depth / Length
225 mm
Section Width
1
Product Net Weight
2.014 kg
Built-In Depth (t2)
225 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.098 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
ETIM 8
EC000068 - Meter board
ETIM 9
EC000068 - Meter board
eClass
V11.0 : 27142417
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: 60 DIN Place Units and 3-point fixing for the meter device. Business Impact: Enables high-density meter mounting within a compact footprint, reducing cabinet size and wiring complexity. Application: Ideal for CombiLine interior systems where space efficiency and modular growth are required. Feature: 90-degree press-and-turn closure with plastic covers in RAL 7035. Business Impact: Simplifies access, improves operator safety, and maintains a clean showroom finish over time. Application: Suitable for frequent maintenance cycles in commercial and industrial cabinets. Feature: DIN EN 61439-3/2 compliance with CE declarations. Business Impact: Lowers regulatory risk, accelerates approvals, and supports compliant deployments across European sites. Application: Essential for panel builders targeting standard-compliant meter boards. Feature: RoHS, REACH, and CMRT documentation. Business Impact: Reduces supply chain risk and environmental impact while enabling easier supplier qualification. Application: Meets European market requirements for electrical enclosures and components. Feature: Built-in depth of 225 mm, 250 mm width, and 750 mm height with CombiLine compatibility. Business Impact: Simplifies installation planning, reduces field rework, and provides predictable mounting in existing cabinets. Application: Fits in a wide range of modular distribution panels for meters and control circuits.
Get a Quick Quote for a ABB 2CPX044172R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044172R9999?
Enquire Now
FAQs
Mount the meter device using 3-point fixing into a 60‑unit grid with a 750 mm by 250 mm footprint inside the CombiLine interior module. Use the 90‑degree press‑and‑turn closure for fast, secure access and connect per IEC wiring guidelines. Compatible with 3‑phase metering and standard ABB components to streamline installations.
This module supports three phases and 60 DIN place units, with a built‑in depth of 225 mm and width of 250 mm. It is designed for interior mounting in CombiLine panels, features durable plastic covers, and aligns with DIN EN 61439‑3/2. Compliance with CE and RoHS further underpins reliable field performance.
Yes. The 60 DIN places, 750Ă—250 footprint, and 225 mm depth make it well-suited for compact to mid-sized switchgear cabinets in industrial environments. Its interior fitting design, 3-point fixing, and ABB CombiLine compatibility support scalable meter management while preserving cabinet aesthetics and serviceability.
The device complies with DIN EN 61439-3 and DIN EN 61439-2, and carries CE Declarations of Conformity. RoHS compliance confirms restriction of hazardous substances, with related REACH information. WEEE categorization indicates the device’s position in environmental compliance, while ETIM and eClass classifications support accurate procurement.
Space efficiency reduces cabinet modification and retrofit costs, while standardized 60 DIN units simplify spare parts planning. The 90-degree closure speeds maintenance, and the 225 mm depth with RAL 7035 finish minimizes repainting needs. Overall, predictable commissioning, reduced downtime, and longer service life translate into favorable total cost of ownership.
