ABB 2CPX044174R9999 EDS meter panel - DIN EN 61439-3
Part Number: 2CPX044174R9999
Quick Summary
ABB 2CPX044174R9999 EDS meter panel is a modular interior fitting module for CombiLine distribution cabinets. It is designed to simplify panel assembly and enable precise space management in compact switchgear applications. Engineers often face unassembled cabinets and inconsistent DIN rail layouts, which this unit mitigates with 36 DIN place units and a fixed 450 mm by 250 mm footprint. The design aligns with CE conformity and RoHS and REACH declarations, and follows DIN EN 61439-2/3 standards, fostering regulatory compliance and long-term reliability. For panel builders and distributors, the module delivers faster installation, easier maintenance, and scalable distribution in light grey RAL 7035, reducing total cost of ownership.
Product Information
Extended Description

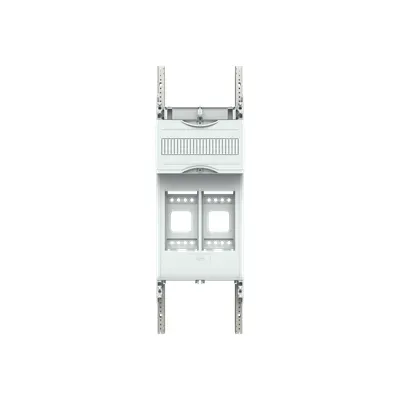

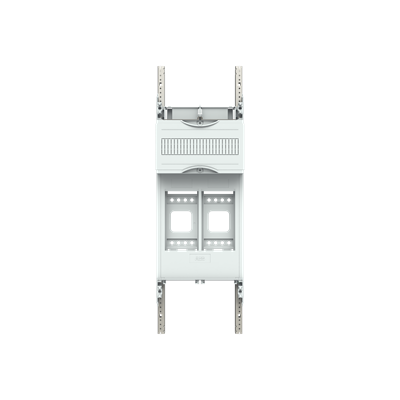

2CPX044174R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for EDS meter, Grid unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, usuable as of the cabinet depth of 225 mm
Rated Operational Voltage
Maximum 400 V
Model Number
eHZ
Number of Phases
3
Number of TSG Panels
0
Enclosure Type
Interior fitting module
Protection Type
None
DIN Place Units
36
Module Function
EDS meter
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
450 mm
Product Net Depth / Length
225 mm
Section Width
1
Product Net Weight
1.467 kg
Built-In Depth (t2)
225 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.528 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting Instruction MZ173 / MZ174
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000068 - Meter board
ETIM 9
EC000068 - Meter board
eClass
V11.0 : 27142417
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: 36 DIN place units. Business Impact: Maximizes space utilization and simplifies routing in dense switchgear assemblies, reducing panel height and wiring complexity. Application: Ideal for EDS meter installations within CombiLine distribution panels. Feature: 450 mm x 250 mm footprint. Business Impact: Enables compact cabinet integration in tight industrial spaces, improving layout efficiency and reducing enclosure depth. Application: Suitable for grid unit configurations where space is at a premium. Feature: Interior fitting module enclosure. Business Impact: Internal mounting minimizes external access points, improving cable management and protection. Application: Critical for clean, serviceable panel environments with frequent maintenance. Feature: RoHS and REACH compliance. Business Impact: Lowers regulatory risk and streamlines supplier onboarding for regulated industries. Application: Supports compliant procurement for European manufacturing and OEMs. Feature: DIN EN 61439-2/3 alignment and mounting instructions MZ173/MZ174. Business Impact: Ensures standardization across installations, accelerating commissioning and enhancing practical serviceability. Application: Panel builders seeking consistent installation practices. Feature: 3-phase operation up to 400 V and EDS meter function. Business Impact: Supports reliable, scalable power distribution and measurement in automated lines. Application: Industrial control panels and distribution cabinets requiring robust electrical performance. This combination of features reflects ABB’s focus on modularity, regulatory compliance, and practical installation advantages for modern panel builders and integrators.
