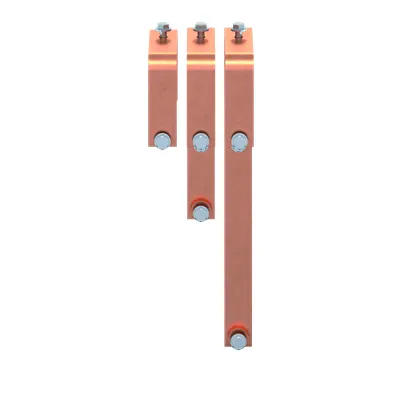

ABB 2CPX044242R9999 Busbar - DIN 43673-1
Part Number: 2CPX044242R9999
Quick Summary
ABB 2CPX044242R9999 Busbar is a copper busbar solution for modular distribution panels used in industrial power distribution. Engineers often struggle with sourcing compliant, high-current busbars that fit ABB CombiLine modular panels and mounting interfaces. This product carries CE conformity, RoHS and REACH declarations, with DIN 43673-1 classification, supporting safe, compliant operation. Designed for scalable power distribution, it helps reduce installation time and lifecycle costs, while maintaining robust current handling. With a wide 1640.66 mm width, compact 40 mm height, and precise 10 mm depth, it integrates seamlessly with ABB’s CombiLine system to simplify field wiring and long-term reliability.
Product Information
Extended Description
2CPX044242R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, rated current maximum 800 A
Rated Current (In)
800 A
Model Number
Flat
Number of Poles
3P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
Accessories Available
Yes
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
1640.66 mm
Product Net Height
40 mm
Product Net Depth / Length
10 mm
Product Net Weight
8.889 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
9.245 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: Rated current of 800 A with 3P configuration. Business Impact: Enables high-load distribution within a single module, reducing the need for multiple smaller conductors and improving overall system efficiency. Application: Ideal for industrial automation and electrical distribution panels where compact, high-capacity busbars are required. Feature: Copper busbar with CombiLine compatibility. Business Impact: Delivers superior electrical conductivity and reduced resistance, enhancing thermal performance and reliability. Application: Suitable for modular distribution panels in manufacturing facilities and process plants. Feature: Untreated surface finishing. Business Impact: Keeps cost lower upfront while permitting controlled surface protection during installation and customization; supports easy cleaning and inspection. Application: Applicable where customers plan protective coatings or in-lab customization for copper busbars. Feature: Accessories Available. Business Impact: This expands install options and future upgrades, decreasing downtime during expansion or reconfiguration. Application: In projects that anticipate system growth or modular reconfiguration in distribution enclosures. Feature: Compliance and standards. Business Impact: CE conformity, RoHS and REACH declarations, plus DIN 43673-1 alignment, reduce risk and accelerate procurement approvals. Application: Essential for regulated industries and environments requiring traceable compliance and end-of-life documentation. Feature: Dimensions and weight. Business Impact: 1640.66 mm net width, 40 mm height, 10 mm depth, with 8.889 kg weight, enabling precise fitment in constrained spaces. Application: Used in designing compact modular panels where space is at a premium and exact clearance is critical.
Get a Quick Quote for a ABB 2CPX044242R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044242R9999?
Enquire Now
FAQs
This busbar is designed for seamless integration with ABB CombiLine modular distribution systems. It aligns with mounting interfaces and uses the ZX2610-33 mounting instructions to ensure correct fitment, electrical contact, and thermal performance in standard panel configurations. Its 1640.66 mm width is optimized for wide panel bays while maintaining compact depth for tight installations.
Key specs include a rated current of 800 A, 3P, copper busbar enclosure, unt threaded surface finishing, and dimensions of 1640.66 mm width x 40 mm height x 10 mm depth, with a net weight of 8.889 kg. These parameters determine current capacity, mechanical fit, and mounting clearance in high-load industrial environments.
Yes. The module carries CE conformity, RoHS and REACH declarations, plus DIN 43673-1 compliance, ensuring safety, material compliance, and compatibility with European regulatory frameworks. The WEEE classification also informs end-of-life disposal practices, supporting sustainable asset management in industrial facilities.
Refer to the mounting instruction ZX2610-33 for proper installation procedures and alignment with CombiLine configurations. The DIN 43673-1 standard guidance complements the assembly process, while the ZX2610-33 document assists with electrical connections, mounting hardware selection, and serviceability in modular panels.
The 800 A rating reduces the need for parallel conductors in high-load applications, improving space efficiency and reducing wiring complexity. Combined with RoHS/REACH compliance and DIN standards, it lowers procurement risk and simplifies regulatory audits, contributing to lower lifecycle costs and improved system uptime.
