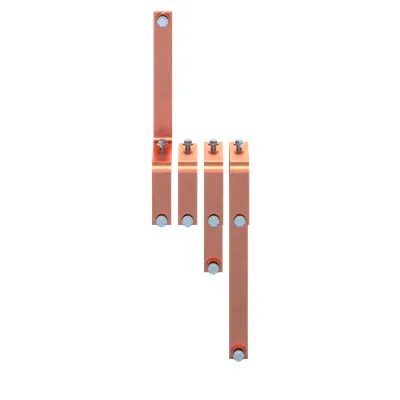

ABB 2CPX044243R9999 Copper Busbar - DIN 43673-1, 800A, 4P
Part Number: 2CPX044243R9999
Quick Summary
Copper busbar for modular distribution panels delivers high-current power routing in ABB CombiLine installations. Engineers face tight spaces, complex assembly sequences, and the need for reliable heat management in multi-pole panels. This ABB solution aligns with CE conformity, RoHS, and REACH compliance, while also meeting WEEE end-of-life expectations, providing regulatory peace of mind. By using an untreated copper busbar with a robust 800 A rating and four poles, it supports compact layouts without sacrificing current handling. The result is faster, safer panel builds and lower lifecycle costs, with easier maintenance and scalable upgrades through standardised mounting and compatible accessories. This helps OEMs accelerate onboarding and reduce field integration risk.
Product Information
Extended Description
2CPX044243R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, rated current maximum 800 A
Rated Current (In)
800 A
Model Number
Flat
Number of Poles
4P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
Accessories Available
Yes
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
2192.88 mm
Product Net Height
40 mm
Product Net Depth / Length
10 mm
Product Net Weight
11.198 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
11.646 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature 800 A rating → Business Impact Enables high-current distribution within compact modular panels, reducing the number of parallel components and simplifying layout planning. Application Suitable for CombiLine modular distribution panels requiring reliable current handling in space-constrained enclosures. Feature 2192.88 mm net width → Business Impact Supports broad, HA-ready busbar spans, improving continuity and reducing interconnect losses in large switchgear assemblies. Application Ideal for multi-pole configurations in industrial control cabinets.Feature 40 mm height and 10 mm depth → Business Impact Enables slim, space-efficient installations without compromising conductivity or mechanical stability. Application Fits tight panel envelopes while maintaining mechanical rigidity.Feature Untreated copper surface → Business Impact Lowers upfront costs and ensures excellent soldering and crimp compatibility, while maintaining high conductivity. Application Beneficial for OEMs integrating with existing copper busbar assemblies.Feature 4P enclosure and 800 A rating → Business Impact Supports four-pole distribution with robust fault tolerance and safe heat management in demanding environments. Application Essential for high‑power machines and process control systems.Feature Rigorous compliance (CE, RoHS, REACH, WEEE) → Business Impact Mitigates regulatory risk and end‑of‑life planning, streamlining audits and supplier qualification. Application Helps manufacturers meet EU directives across design, production, and disposal phases.
Get a Quick Quote for a ABB 2CPX044243R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044243R9999?
Enquire Now
FAQs
The 2CPX044243R9999 is a copper busbar designed for CombiLine modular distribution panels, rated at 800 A and 4P. It ships as a modular assembly compatible with the ZX2610-33 mounting instructions, and its full-width 2192.88 mm profile is intended for large, multi-pole configurations in unassembled panel builds.
Key specs include 800 A rated current, 4 poles (4P), copper busbar enclosure, Untreated surface finishing, dimensions of 2192.88 mm width, 40 mm height, 10 mm depth, and a net weight of 11.198 kg. Accessories are available to support integration into existing panel designs.
Yes. The product carries RoHS information and EU Directive compliance, with a REACH declaration stating no substances above 0.1 mass percentage. The RoHS Date is 20240903 and REACH Date is 20240902, aligning with current EU regulatory requirements.
Mounting follows the ZX2610-33 instructions for CombiLine systems. The component is designed for space-efficient, four-pole distribution within modular panels, ensuring reliable thermal performance and straightforward integration with compatible accessories.
The 800 A capacity with 4P configuration supports scalable, high-current distribution in compact footprints, reducing BOM complexity and installation time. Compliance with RoHS, REACH, and WEEE simplifies audits, while the untreated copper surface offers cost-effective fabrication and robust long-term reliability.
