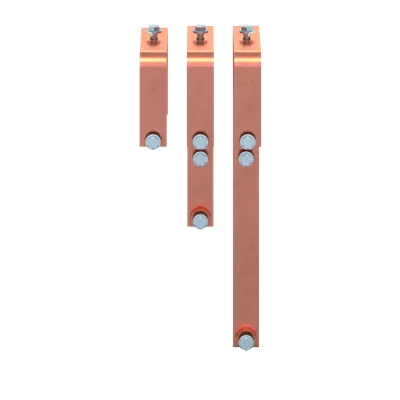

ABB 2CPX044245R9999 Busbar - DIN 43673-1
Part Number: 2CPX044245R9999
Quick Summary
ABB 2CPX044245R9999 copper busbar enables modular power distribution in industrial panels. Engineers often struggle with rework, corrosion risk, and space constraints when assembling busbar systems. The product carries CE conformity, RoHS compliance, REACH declarations, and is specified under DIN 43673-1, providing clear regulatory alignment. Designed for the ABB CombiLine modular distribution approach, it supports scalable architectures and straightforward maintenance across growing facilities. With an 800 A rating, 3P configuration, and an untreated copper surface, it delivers low-resistance paths for high-current feeders while reducing total installed footprint. These attributes help minimize lifecycle costs and improve uptime in energy-intensive environments.
Product Information
Extended Description
2CPX044245R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, rated current maximum 800 A
Rated Current (In)
800 A
Model Number
Flat
Number of Poles
3P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
Accessories Available
Yes
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
1783.16 mm
Product Net Height
40 mm
Product Net Depth / Length
10 mm
Product Net Weight
9.412 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
9.788 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature → Business Impact → Application: Rated current up to 800 A provides a single, high-capacity path for peak loads, reducing the need for parallel conductors and cutting installation time. This translates to lower material costs, reduced voltage drop, and improved thermal performance in switchgear and distribution panels. Application: ideal for 800 A feeders within CombiLine modular distribution systems where space is at a premium. Feature → Business Impact → Application: Three-pole configuration with copper busbar (untreated surface) delivers low contact resistance and robust mechanical stability, enhancing reliability in demanding environments. Application: suited for multi-pole busbar arrangements in compact control panels needing durable, scalable current pathways. Feature → Business Impact → Application: Accessories available and mounting instructions ZX2610-33 streamline installation, minimize commissioning time, and support standardized assembly practices. Application: speeds up project timelines for new builds and panel upgrades. Feature → Business Impact → Application: RoHS, REACH, and WEEE compliance reduce regulatory risk and support audit readiness, providing peace of mind for global deployments. Application: essential for European and international manufacturing operations prioritizing sustainability and traceability. Feature → Business Impact → Application: DIN 43673-1 compliance and ETIM/eClass alignment simplify procurement and cross-brand integration in large electrical builds. Application: improves compatibility with other CombiLine components and reduces design time. Feature → Business Impact → Application: Modularity and precise dimensions enable plug-and-play integration in modular panels, cutting rework costs and enabling scalable data center and manufacturing automation infrastructure.
Get a Quick Quote for a ABB 2CPX044245R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044245R9999?
Enquire Now
FAQs
This busbar is sold as a component for modular CombiLine systems and is not pre-assembled. Follow mounting instructions ZX2610-33 to ensure correct alignment with connectors, insulators, and adjacent busbars. Verify 3P configuration and 800 A rating for your feeder, and plan for proper clearance to maintain cooling and fault clearance. Compatible accessories simplify mounting and reduce commissioning time.
Confirm rated current of 800 A, 3P configuration, copper busbar enclosure, untreated surface, and dimensions of 1783.16 mm width by 40 mm height and 10 mm depth. Weight is 9.412 kg. Also check RoHS and REACH declarations, DIN 43673-1 standard, and WEEE categorization for compliance and lifecycle planning.
Yes. The 800 A rating and copper construction provide low contact resistance and robust current handling for high-demand feeders. The 3P configuration supports three-phase distribution, while the CombiLine compatibility ensures scalable expansion. Always assess enclosure space, ventilation, and connector compatibility to maximize performance in automation and switchgear assemblies.
The busbar carries CE conformity, RoHS compliance under EU Directive 2011/65/EU and Amendment 2015/863, and REACH declarations. WEEE categorization applies, and DIN 43673-1 is listed in external standards. These certifications support regulatory compliance across European and global manufacturing environments and facilitate audit readiness.
The untreated copper surface reduces initial processing steps, while the documented RoHS/REACH compliance simplifies supplier audits. Its modular design supports easier replacements and expansions, lowering downtime during upgrades. Weight and dimensions are well-suited for retrofits in existing panels, helping to lower total cost of ownership in energy-intensive installations.
