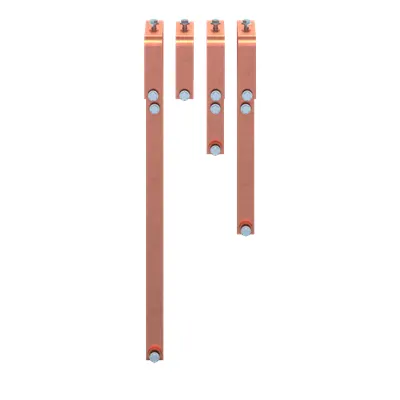

ABB 2CPX044247R9999 Power Busbar - DIN 43673-1
Part Number: 2CPX044247R9999
Quick Summary
ABB 2CPX044247R9999 is a copper busbar module designed for high-current modular distribution in industrial control panels. This solution helps engineers create safe, low-impedance current paths while preserving cabinet space in compact switchgear. A common challenge is delivering reliable current flow under dynamic load profiles without triggering overheating or complex wiring strategies. The product carries CE conformity, RoHS compliance, and REACH declarations, ensuring regulatory peace of mind across European operations. Built for CombiLine modular distribution, it offers robust mechanical compatibility and straightforward integration with accessories. With an 800 A rated current and four-pole configuration, you gain scalable, cost-efficient power routing that reduces assembly time and improves overall panel performance.
Product Information
Extended Description
2CPX044247R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, rated current maximum 800 A
Rated Current (In)
800 A
Model Number
Flat
Number of Poles
4P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
Accessories Available
Yes
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
2852.88 mm
Product Net Height
40 mm
Product Net Depth / Length
10 mm
Product Net Weight
13.776 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
14.327 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
High-current capability up to 800 A is supported by a four-pole copper busbar enclosure, delivering substantial power density and reducing the need for multiple parallel conductors. This lowers contact resistance, improves thermal performance, and simplifies conductor routing in dense power layouts such as modular distribution panels and compact control cabinets. The modular distribution design enhances scalability; it pairs with existing CombiLine components and available accessories, shortening project timelines and enabling smoother plant expansions. RoHS and REACH compliance, along with CE conformity, provide regulatory confidence for European manufacturing and service operations, reducing compliance overhead and lifecycle risk. The cataloged ETIM and eClass classifications, plus DIN 43673-1 alignment, simplify procurement, catalog integration, and cross-brand compatibility. Dimensions and weight figures enable precise space planning in panel enclosures, while ZX2610-33 mounting instructions streamline installation and serviceability. Overall, the solution supports faster deployment, reduced labor costs, and reliable long-term operation in evolving automation systems.
Get a Quick Quote for a ABB 2CPX044247R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044247R9999?
Enquire Now
FAQs
Consult the ZX2610-33 mounting instructions and ensure four-pole copper busbar alignment within the CombiLine framework. Verify enclosure compatibility, secure all connections, and follow RoHS/REACH practices. The modular design supports straightforward wiring reductions and faster commissioning in standard control cabinets.
The busbar is rated for 800 A with a 4P configuration, enclosed in copper busbar, and features an untreated surface. These specs support high-current distribution in compact panels while maintaining manageable thermal behavior.
Yes. It carries EU RoHS information and a REACH declaration, with documented dates, CE conformity, and related declarations to satisfy European regulatory requirements for electrical components used in distribution panels.
Ideal for CombiLine modular distribution panels, control cabinets, and other high-current power routing scenarios in machinery and automation systems. Its wide busbar cross-section supports low impedance paths, aiding reliability in evolving automation layouts.
The product aligns with DIN 43673-1, ETIM 8 EC001522 and ETIM 9 EC001522 classifications, and eClass V11.0 27370303. It is also covered by CE declarations and WEEE categorization for proper lifecycle handling.
