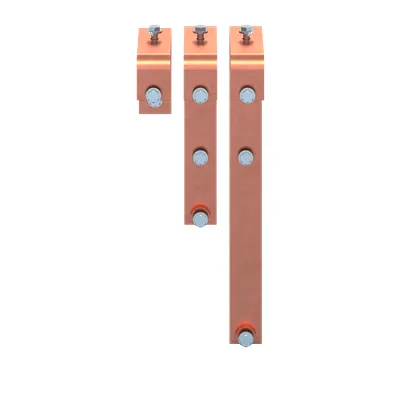

ABB 2CPX044248R9999 Busbar - DIN 43673-1
Part Number: 2CPX044248R9999
Quick Summary
ABB 2CPX044248R9999 busbar enables high-current modular distribution in industrial power panels. Engineers face overheating and reliability issues when distribution paths are undersized or poorly connected. This copper busbar is designed for CombiLine modular distribution panels and meets CE conformity, DIN 43673-1 standards, and RoHS/REACH declarations, supporting regulator-ready deployments. The product’s 3P copper busbar with Untreated surface and a 1000 A rating delivers a robust current path while fitting seamlessly with accessory options and ZX2610-33 mounting instructions. In practice, it shortens installation time, reduces field wiring complexity, and improves safety margins across demanding applications in manufacturing, data centers, and process automation.
Product Information
Extended Description
2CPX044248R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, rated current maximum 1000 A
Rated Current (In)
1000 A
Model Number
Flat
Number of Poles
3P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
Accessories Available
Yes
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
1605.72 mm
Product Net Height
50 mm
Product Net Depth / Length
10 mm
Product Net Weight
10.342 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
10.756 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: Rated current up to 1000 A. Business impact: Enables reliable high-load distribution without overheating, reducing unplanned downtime. Application: Suitable for large industrial panels and power distribution rooms where 3-phase copper busbars are required. Long-tail keyword integration: high-current busbar, 1000 A busbar, modular distribution panels. Feature: Copper busbar with Untreated surface. Business impact: Maximizes electrical conductivity while simplifying post-installation finishing and inspection. Application: Direct integration into ABB CombiLine systems for fast commissioning. Feature: 3P configuration. Business impact: Optimizes three-phase current paths for balanced loads, improving efficiency and safety in motor control centers. Application: 3-pole busbar assemblies in modular panels. Feature: Accessories Available. Business impact: Enhances flexibility and future upgrades while minimizing total cost of ownership. Application: Compatibility with CombiLine accessories and ZX2610-33 mounting procedures. Feature: RoHS and REACH compliant. Business impact: Ensures regulatory compliance and safer material usage, reducing compliance risk. Application: Suitable for regulated environments like automotive, food & beverage, and data centers. Feature: DIN 43673-1 and ETIM eClass compatibility. Business impact: Streamlines procurement and specification workflows with standard classifications. Application: Industrial procurement and engineering design validation.
Get a Quick Quote for a ABB 2CPX044248R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044248R9999?
Enquire Now
FAQs
The busbar is designed for CombiLine modular distribution panels with a 3P configuration and a rated current of 1000 A. It aligns with the panel type described as modular distribution panel not assembled and is intended to be installed using the ZX2610-33 mounting instructions. Its dimensions and weight support straightforward integration with accessory options and standard mounting layouts in ABB systems.
Key specs include rated current 1000 A, 3P poles, copper enclosure type, Untreated surface, dimensions 1605.72 mm width x 50 mm height x 10 mm depth, and a net weight of 10.342 kg. It supports available accessories and is listed under ETIM EC001522 with DIN 43673-1 standards, along with RoHS/REACH compliance.
Yes. RoHS information confirms EU Directive 2011/65/EU and Amendment 2015/863 as applicable, with a RoHS date of 20240903. The REACH declaration indicates compliance with the REACH Regulation ABB STRIEBEL & JOHN, and a REACH date of 20240902. These declarations support regulatory compliance for regulated industries.
Mounting and installation follow ABB’s ZX2610-33 instruction set. The product is compatible with CombiLine modular panels and supports available accessories to tailor the setup to specific panel architectures. ETIM classification EC001522 and eClass V11.0 27370303 help with correct specification in procurement and documentation workflows.
This busbar delivers high-current capacity (1000 A) with a robust copper path, reducing overheating risk and downtime in critical power lines. Its DIN 43673-1, RoHS, and REACH compliance simplify compliance audits, while modular compatibility with CombiLine panels accelerates installation and enables easier future upgrades, lowering total cost of ownership in process automation environments.
