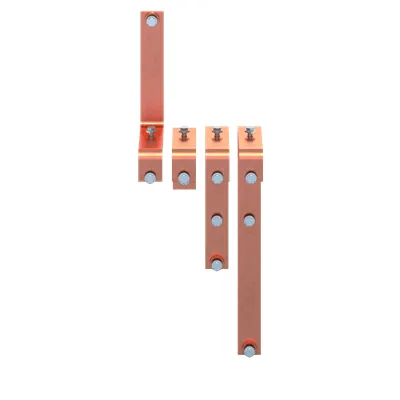

ABB 2CPX044249R9999 Copper Busbar - 1000 A, 4P
Part Number: 2CPX044249R9999
Quick Summary
ABB 2CPX044249R9999 is a copper busbar for high-current modular distribution panels in power management systems. Engineers face space constraints, heat, and assembly complexity when expanding busbar systems in control cabinets. This solution aligns with CE conformity, RoHS, and REACH requirements, supporting safe, compliant installations across regional standards. Its CombiLine modular design helps reduce installation time and maintenance costs, while offering reliable 1000 A capacity in a compact form. Designed for ABB CombiLine panels and similar modular distribution systems, it enhances overall system reliability and strengthens business value through reduced total cost of ownership.
Product Information
Extended Description
2CPX044249R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, rated current maximum 1000 A
Rated Current (In)
1000 A
Model Number
Flat
Number of Poles
4P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
Accessories Available
Yes
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
2088.88 mm
Product Net Height
50 mm
Product Net Depth / Length
10 mm
Product Net Weight
12.83 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
13.343 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: Rated Current (In) 1000 A → Business Impact: Enables high-current distribution with a single bar, reducing the need for multiple parallel conductors and saving space and materials. Application: data centers, industrial drives, and large control cabinets benefit from streamlined power paths. Feature: Number of Poles 4P → Business Impact: Simplifies electrical topology and reduces planning time for multi-branch feeders. Application: reliable, scalable power distribution across four-pole configurations in modular panels. Feature: Enclosure Type Copper busbar → Business Impact: High conductivity minimizes voltage drop and thermal buildup, improving overall efficiency. Application: critical power rails in CombiLine systems where stable current delivery matters. Feature: Surface Finishing Untreated → Business Impact: Flexible field finishing options and compatibility with enclosure environments; lowers initial material cost. Application: suitable for integration into protected panels with appropriate enclosure protection. Feature: Accessories Available Yes → Business Impact: Enables future expansion and system tailoring without rework. Application: supports mounting accessories and kit integration within ABB CombiLine distributions. Feature: Material Compliance RoHS/REACH → Business Impact: Ensures regulatory alignment, risk reduction, and easier procurement across regions. Application: supports CE declarations and compliance workflows for industrial automation projects.
Get a Quick Quote for a ABB 2CPX044249R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044249R9999?
Enquire Now
FAQs
Yes. This copper busbar is specified for CombiLine modular distribution panels and similar systems. With a 4P configuration and dimensions aligned to standard layouts, it integrates into ABB and compatible panel frames. For exact mounting guidance, reference ZX2610-33 mounting instructions and ensure enclosure clearance matches the 50 mm height and 10 mm depth.
Key specs include a rated current of 1000 A, four poles (4P), copper busbar enclosure, and a compact footprint with net width 2088.88 mm, height 50 mm, and depth 10 mm. Weight is 12.83 kg, which informs handling and support requirements during installation and cabinet planning.
Yes. The product carries RoHS information and a RoHS date of 2024-09-03, along with REACH declarations. It adheres to EU directives and ABB’s compliance program, supporting safe usage in regulated manufacturing and distribution environments.
This busbar is ideal for high-current, modular distribution in control cabinets and ABB CombiLine panels. Its 1000 A rating, 4P configuration, and copper enclosure support power rails for data centers, manufacturing lines, and other enterprise automation infrastructures requiring robust, reliable power delivery.
The 1000 A rating reduces the need for multiple conductors, lowering material and labor costs during installation. Its compatibility with modular CombiLine panels accelerates upgrades and expansions, while RoHS/REACH compliance mitigates regulatory risk. Overall, you gain faster builds, lower OPEX, and improved system reliability.
