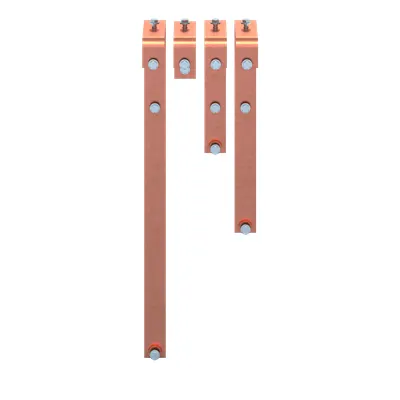

ABB 2CPX044250R9999 Busbar - 1000 A, DIN 43673-1
Part Number: 2CPX044250R9999
Quick Summary
ABB 2CPX044250R9999 copper busbar is a high-current conductor designed for modular CombiLine panels in industrial power distribution. The main challenge for engineers is assembling compliant, durable busbar sections quickly without compromising safety or reliability. It carries CE conformity, RoHS compliance, REACH declarations, and WEEE classification, supporting regulatory readiness across regional markets. Coupled with ZX2610-33 mounting guidance and available accessories, it enables faster installation, reduced field errors, and easier maintenance. This solution also aligns with ETIM EC001522 and DIN 43673-1 standards, ensuring compatibility with common data models and certification expectations while delivering predictable performance in control cabinets and switchgear environments. For procurement teams, the modular nature of CombiLine simplifies expansion and lifecycle management.
Product Information
Extended Description
2CPX044250R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, rated current maximum 1000 A
Rated Current (In)
1000 A
Model Number
Flat
Number of Poles
4P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
Accessories Available
Yes
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
2615.88 mm
Product Net Height
50 mm
Product Net Depth / Length
10 mm
Product Net Weight
15.486 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
16.105 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: Rated current of 1000 A enables uninterrupted high-load distribution in demanding applications. Business impact: reduces bottlenecks in motor control centers and switchgear, delivering consistent performance and lowering conductor sizing costs. Application: ideal for large industrial automation lines and modular distribution panels in process industries. Feature: 4P configuration supports compact, scalable panel design. Business impact: enables standardized assemblies across multiple feed points while maintaining safety compliance. Application: suitable for four-pole busbar arrangements in CombiLine systems. Feature: Copper busbar with Untreated surface provides low electrical resistance and robust mechanical integrity. Business impact: improves heat dissipation and connection reliability, reducing maintenance intervals. Application: suitable for soldering or clamp-based terminations in industrial cabinets. Feature: Accessories Available allows expansion without new part types, speeding up procurement. Business impact: reduces lead times and total cost of ownership by enabling ready-to-use configurations. Application: integrates with ABB CombiLine accessories and ZX2610-33 mounting accessories. Feature: Compliance and standards alignment with RoHS, REACH, WEEE, and DIN 43673-1/ETIM ensures regulatory readiness. Business impact: minimizes compliance risk, supports market access, and simplifies qualification testing. Application: ideal for global projects in automotive, food & beverage, and water treatment where standardization matters. Installation and logistics: Dimensions 50 mm x 2615.88 mm x 10 mm and weight 15.486 kg enable precise enclosure planning; mounting instructions ZX2610-33 provide clear installation steps.
Get a Quick Quote for a ABB 2CPX044250R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044250R9999?
Enquire Now
FAQs
Yes. This 50 mm x 2615.88 mm x 10 mm copper busbar is designed for ABB CombiLine modular distribution panels, featuring a 4P configuration and compatible with ZX2610-33 mounting instructions and available accessories to simplify assembly.
The busbar is rated for 1000 A interconnection with 4P poles. Copper construction delivers low resistance, supporting efficient current flow and reduced heat generation in high-load applications such as MCCs and large automation loops.
Yes. Its 1000 A rating, copper enclosure, and modular CombiLine compatibility make it ideal for high-current distribution in MCCs and switchgear, enabling scalable, reliable installations with straightforward maintenance.
The busbar carries CE conformity, RoHS compliance, REACH declarations, and WEEE classification. It also references DIN 43673-1 and ETIM EC001522 to align with common data models and certification expectations.
Mounting guidance ZX2610-33 and available accessories reduce installation time and field errors, while modular CombiLine design supports scalable expansion and lifecycle management, delivering lower total cost of ownership over time.
