ABB 2CPX044252R9999 Power Busbar - 800 A RoHS/REACH
Part Number: 2CPX044252R9999
Quick Summary

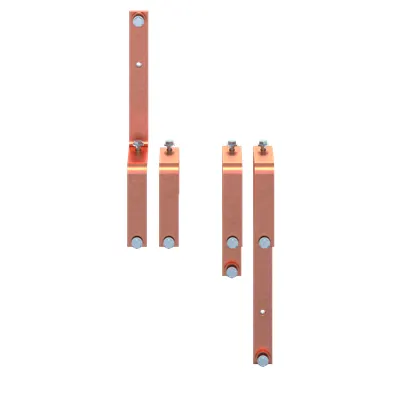

ABB 2CPX044252R9999 Power Busbar is a copper busbar solution for modular distribution panels. Engineers frequently struggle with heat, space constraints, and current ratings in compact switchgear. This part ships with RoHS and REACH compliance and a CE declaration, plus WEEE guidance. Designed for ABB CombiLine modular systems, it enables scalable, compliant power distribution with predictable downtime. In practice, this translates to faster installation, reduced wiring complexity, and long-term cost savings through higher current capacity and reliable copper busbar performance. Its ready compatibility with industry standards supports easier procurement and lower risk in project timelines. The result is a robust, maintainable solution that supports uptime and safety across industrial environments.
Product Information
Extended Description
2CPX044252R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, rated current maximum 800 A
Rated Current (In)
800 A
Model Number
Flat
Number of Poles
4P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
Accessories Available
Yes
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
2252.88 mm
Product Net Height
40 mm
Product Net Depth / Length
10 mm
Product Net Weight
11.028 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
11.469 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: 800 A rated current and 4P configuration provide a robust backbone for distributing high power in a single module. Business Impact: Reduces cabinet complexity and improves current sharing across feeders, enabling faster deployment on legacy lines and new builds. Application: Suitable for large process lines and ABB CombiLine panels where reliable high-current paths are essential. Feature: Copper busbar enclosure and Untreated surface deliver low resistance paths and durable conductivity. Business Impact: Minimizes thermal rise, reduces voltage drop, and supports longer cable runs with fewer heat-related losses. Application: Industrial switchgear and power distribution equipment in demanding environments. Feature: Specific dimensions 2252.88 mm width, 40 mm height, 10 mm depth for space-efficient installation. Business Impact: Easier integration into standard modular panels and cabinets, lowering layout risk and rework. Application: Modular distribution layouts where space is constrained. Feature: Regulatory compliance including RoHS, REACH, CE, and WEEE guidance. Business Impact: Simplifies procurement, accelerates audits, and mitigates compliance risk across EU projects. Application: Global deployments requiring traceable environmental declarations. Feature: ZX2610-33 mounting instructions and available accessories. Business Impact: Streamlines field installation, reduces labor time, and improves maintainability. Application: On-site assembly and routine maintenance in expansion projects. Feature: Net weight 11.028 kg supports manageable handling. Business Impact: Safer, more efficient crane and lift planning during installation. Application: Panel assembly in production lines and industrial facilities. Feature: CombiLine compatibility and ETIM eClass alignment. Business Impact: Nutrients for seamless data exchange with procurement and maintenance systems. Application: System integrations and asset management in modern factories.
Get a Quick Quote for a ABB 2CPX044252R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044252R9999?
Enquire Now
FAQs
For installation, follow the ZX2610-33 mounting instructions and use appropriate hardware to secure the 4P copper busbar within CombiLine modular panels. Plan for adequate clearance, verify connectors compatibility, and ensure alignment with adjacent feeders to maintain even current distribution. Consider the weight and use proper lifting aids to reduce handling risks during mounting.
Yes. This busbar is designed for CombiLine modular systems and ships as a copper enclosure with an untarnished surface to fit into standard, non-assembled panel configurations. Its 2252.88 mm width and 10 mm depth are optimized for modular layouts, supporting straightforward procurement and assembly with ABB components.
The busbar provides an 800 A rated current with a 4P configuration, enabling high-power distribution in compact installations. It uses copper as the enclosure material to minimize resistance and supports reliable current sharing across multiple feeders, reducing voltage drop and thermal stress in demanding environments.
The product complies with RoHS and REACH, carries a CE declaration, and follows WEEE guidelines. EU declarations of conformity and environmental reporting support compliance during audits, sustainable procurement, and end-of-life treatment in European projects.
Dimensions are 2252.88 mm width, 40 mm height, and 10 mm depth, with a net weight of 11.028 kg. These specs influence cabinet width planning, mounting clearance, and handling requirements. The dimensions are optimized for standard modular panels, reducing the risk of fit issues during assembly.
