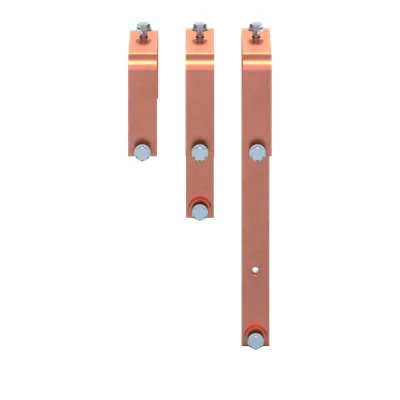

ABB 2CPX044254R9999 Busbar - DIN 43673-1 Certified
Part Number: 2CPX044254R9999
Quick Summary
ABB 2CPX044254R9999 is a copper busbar system designed for modular distribution panels in industrial electrical rooms. Engineers often struggle with high-current reliability and the challenge of integrating modular components in compact spaces. This design delivers CE conformity, RoHS compliance, and REACH declarations to support regulatory requirements across regional markets. The solution couples with ABB CombiLine panels to streamline assemblies, reduce BOM variance, and improve serviceability, delivering measurable business value through faster deployment and lower lifecycle costs while maintaining scalable power distribution.
Product Information
Extended Description
2CPX044254R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, rated current maximum 800 A
Rated Current (In)
800 A
Model Number
Flat
Number of Poles
3P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
Accessories Available
Yes
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
1646.66 mm
Product Net Height
40 mm
Product Net Depth / Length
10 mm
Product Net Weight
8.885 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
9.24 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: Rated current 800 A with a 3P copper busbar delivers high-power capability in a compact module. Business Impact: reduces conductor sizing uncertainty and minimizes voltage drop across distribution paths, improving system efficiency and uptime. Application: ideal for ABB CombiLine modular distribution panels in industrial facilities and data centers where space is at a premium. The flat model aids straightforward routing in panel enclosures and simplifies assembly with standard components. Feature: Copper busbar construction provides low resistive losses and robust conductivity under heavy loads. Business Impact: supports reliable current carrying with minimal overheating and longer service life in harsh environments. Application: especially suitable for modular distribution systems in electrical rooms, machine cabinets, and switchgear. Feature: Accessories available enables easy expansion and customization. Business Impact: reduces procurement delays and BOM fragmentation by pre-planned add-ons. Application: integrate with ZX2610-33 mounting instructions to accelerate installation and ensure consistent fit with CombiLine modules. Feature: RoHS and REACH declarations alongside DIN 43673-1 standards ensure regulatory compliance. Business Impact: simplifies supplier audits and keeps manufacturing in regulated sectors on track. Application: appropriate for automotive, energy, and process industries that demand traceable material compliance. Feature: Dimensional and packaging data—1646.66 mm width, 40 mm height, 10 mm depth; weight 8.885 kg; packaging as 1 piece per unit. Business Impact: aids accurate planning, shipping, and inventory control. Application: supports procurement teams and logistics planning for modular distribution builds.
Get a Quick Quote for a ABB 2CPX044254R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044254R9999?
Enquire Now
FAQs
This busbar supports ZX2610-33 mounting and is designed for 3P copper busbar configurations within ABB CombiLine modular distribution panels. Ensure panel clearances match the 1646.66 mm width and plan routing for the 10 mm depth. Verify compatibility with surrounding components and mounting rails for a reliable, serviceable installation.
Key specs include Rated Current of 800 A, Model Number Flat, Number of Poles 3P, Enclosure Type Copper busbar, Surface Finishing Untreated, and Accessories Available Yes. Dimensional data lists Product Net Width 1646.66 mm, Height 40 mm, Depth 10 mm, with a Net Weight of 8.885 kg.
Yes. It carries RoHS information per EU Directive 2011/65/EU and Amendment 2015/863, with an RoHS date of 2024-09-03. REACH declarations are provided by ABB STRIEBEL & JOHN, stating no substances exceeding 0.1 mass percentage are present, and REACH date is 2024-09-02. This supports regulatory compliance in regulated industries.
The product aligns with multiple standards including DIN 43673-1, ETIM 8 EC001522 and ETIM 9 EC001522 for busbars, and eClass V11.0 27370303. WEEE Category is 5 (Small Equipment), with B2C/B2B applicability, aiding compliance reporting and end-of-life requirements.
The 800 A rating supports high-current operation with reduced conductor sizing and voltage drop, improving efficiency and uptime. Availability of accessories and mounting compatibility lowers BOM variance and installation time. Regulatory compliance (RoHS/REACH/DIN) reduces audit risk, while standard packaging (pack 1 piece) simplifies logistics and inventory management.
