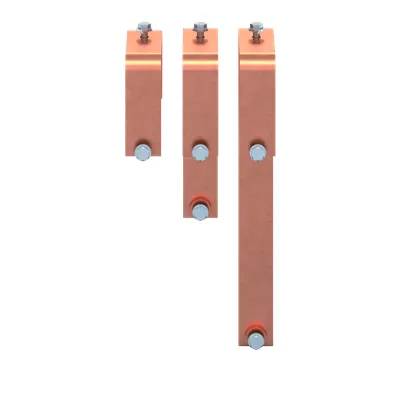

ABB 2CPX044257R9999 Copper Busbar - 1000 A Modular CE
Part Number: 2CPX044257R9999
Quick Summary
Copper busbar is ABB 2CPX044257R9999 designed for high‑current distribution in modular power panels. Engineers often face space constraints, heat buildup, and unreliable connections in compact switchgear, making fast, dependable assemblies essential. This solution aligns with CE declarations, RoHS compliance under EU directives, and DIN 43673-1 standards, with REACH and WEEE considerations for responsible manufacturing. By delivering a 1000 A rating in a 3P configuration and seamless CombiLine compatibility, it supports scalable deployments. The combination of robust electrical performance and streamlined installation translates into reduced downtime, easier compliance, and lower total cost of ownership for industrial power distribution projects.
Product Information
Extended Description
2CPX044257R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, rated current maximum 1000 A
Rated Current (In)
1000 A
Model Number
Flat
Number of Poles
3P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
Accessories Available
Yes
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
1646.66 mm
Product Net Height
50 mm
Product Net Depth / Length
10 mm
Product Net Weight
10.495 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
10.915 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature 1: Rated current of 1000 A in a 3P copper busbar configuration. Business impact: enables safe, efficient three‑phase power distribution for demanding loads without excessive copper cross‑section or voltage drop. Application: large modular distribution panels within CombiLine systems, allowing faster ramp‑ups and improved load balancing. Feature 2: Copper enclosure type with untreated surface finishing. Business impact: ensures excellent conductivity with cost‑efficient materials, simplifying procurement while maintaining reliable performance. Application: standard copper busbar installations where conservative surface treatment is acceptable, reducing maintenance complexity. Feature 3: Accessories available and mounting compatibility. Business impact: accelerates project timelines by allowing ready integration with ZX2610‑33 mounting instructions and existing components. Application: modular retrofit projects and new builds where plug‑and‑play integration matters. Feature 4: Regulatory compliance package (RoHS, REACH, WEEE, DIN 43673-1, CE). Business impact: minimizes regulatory risk and simplifies documentation for audits and sustainability reporting. Application: industrial plants with strict compliance requirements across jurisdictions. Feature 5: Precise dimensions and weight (1646.66 mm width, 50 mm height, 10 mm depth; 10.495 kg). Business impact: predictable space planning and safe handling during installation. Application: fits standard modular panels and supports accurate clearance planning in crowded switchgear rooms.
Get a Quick Quote for a ABB 2CPX044257R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044257R9999?
Enquire Now
FAQs
The 2CPX044257R9999 is designed as a copper busbar for CombiLine modular panels. It features a 3P configuration and 1646.66 mm width that aligns with standard modular distribution assemblies, while ZX2610-33 mounting instructions ensure straightforward, field‑friendly installation and reliable connections in compact switchgear.
Key specs include a rated current of 1000 A, 3P configuration, copper enclosure type with an untreated surface, and dimensions of 1646.66 mm (width) by 50 mm (height) by 10 mm (depth); weight is 10.495 kg. These figures support high‑current, three‑phase distribution in industrial panels.
Yes. The product carries EU RoHS information and a CE Declaration of Conformity for Distribution Panel System CombiLine N. REACH information confirms no substances above threshold levels, and WEEE considerations are addressed, helping you meet regulatory and sustainability targets.
Follow the ZX2610-33 mounting instructions for correct assembly within the CombiLine system. Ensure the three‑pole copper busbar is properly seated, secured, and that space allowances match the 1646.66 mm width and 10 mm depth to avoid impedance or overheating in dense panels.
It enables reliable high‑current distribution (1000 A) in modular panels, reducing downtime and voltage drop risks. Regulatory compliance (RoHS, REACH, CE) simplifies audits, while compatibility with existing CombiLine systems speeds up deployment and lowers total cost of ownership through efficient installation and long‑term reliability.
