ABB 2CPX044258R9999 Busbar - DIN 43673-1
Part Number: 2CPX044258R9999
Quick Summary
ABB 2CPX044258R9999 Busbar is a copper busbar module designed for high-current, modular distribution panels in industrial power systems. Engineers often wrestle with wiring complexity and space constraints when scaling power delivery on the shop floor. This solution aligns with CE conformity, RoHS compliance, REACH declarations, and DIN 43673-1 standards, reducing regulatory risk and project delays. With a compact footprint and a rated 1000 A, 4P configuration, it enables dense CombiLine installations while simplifying maintenance and future upgrades. The design supports fast procurement and predictable performance across mid- to large-scale power distribution projects, delivering clear business value for engineering and procurement teams.
Product Information
Extended Description

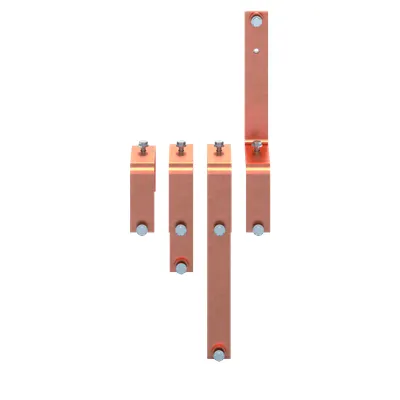

2CPX044258R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, rated current maximum 1000 A
Rated Current (In)
1000 A
Model Number
Flat
Number of Poles
4P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
Accessories Available
Yes
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
2210.88 mm
Product Net Height
50 mm
Product Net Depth / Length
10 mm
Product Net Weight
13.385 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
13.92 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: Copper busbar with 1000 A rating and 4P configuration. Business impact: Delivers reliable high-current distribution with minimal voltage drop and reduced thermal losses, enabling compact panel designs. Application: Suited for ABB CombiLine modular distribution panels where reliable current paths are essential. Feature: Dimensions 50 mm x 2210.88 mm x 10 mm with a net weight of 13.385 kg. Business impact: Enables higher panel density and easier routing in space-constrained switchgear, reducing enclosure size and installation time. Application: Ideal for dense power distribution layouts in industrial facilities. Feature: Untreated surface finishing. Business impact: Provides a predictable conductivity baseline with flexibility for field coatings or integration with existing copper busbars, lowering upfront processing costs. Application: Preferred when on-site customization is anticipated or when coatings are planned during service life. Feature: Accessories Available and mounting instruction ZX2610-33. Business impact: Reduces lead times and installation risk by providing ready-to-use hardware and documented mounting procedures. Application: Streamlines field deployment for CombiLine panels and similar assemblies. Feature: Compliance and standards coverage. Business impact: Ensures RoHS, REACH, WEEE compliance and DIN 43673-1 classification, delivering regulatory assurance for procurement and end-user safety. Application: Suitable for regulated manufacturing environments and plant-wide electrical installations.
Get a Quick Quote for a ABB 2CPX044258R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044258R9999?
Enquire Now
FAQs
This busbar is designed for seamless integration with ABB CombiLine modular distribution panels. It uses a 4P configuration for multiple conductors, and mounting references comply with ZX2610-33 instructions, helping installers align components quickly and reliably while preserving conductive integrity and electrical clearance.
Key specs include a rated current of 1000 A, 4 poles, and a copper enclosure type. Net dimensions are 50 mm in height, 2210.88 mm in width, and 10 mm in depth, with a net weight of 13.385 kg. These figures support high-current distribution in dense panel layouts.
Yes, the busbar is RoHS and REACH compliant, with WEEE considerations and a CE Declaration of Conformity. It follows DIN 43673-1 standards for busbars, ensuring regulatory alignment and safer procurement for industrial facilities seeking reliable power distribution components.
The product features an untreated copper surface by default, offering flexibility for field coatings or interaction with existing copper systems. If environmental conditions demand protection, coatings or treatments can be planned during commissioning, while maintaining conductivity and compatibility with modular distribution hardware.
The copper busbar provides robust conductivity with low resistance, supporting long service life in continuous operation. The 4P configuration simplifies future expansions, and documented mounting instructions reduce installation errors, contributing to lower maintenance costs and quicker ROI in medium to large-scale power distribution projects.
