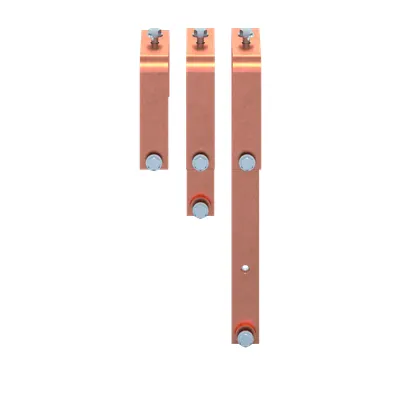

ABB 2CPX044260R9999 Copper Busbar - 800 A, 3P, DIN 43673-1
Part Number: 2CPX044260R9999
Quick Summary
ABB 2CPX044260R9999 copper busbar module for scalable distribution panels in industrial power systems. In many projects, engineers struggle with bulky, inefficient busbars that slow assembly and increase thermal risk. This product aligns with CE declarations, RoHS/REACH compliance and DIN 43673-1 busbar standards. Designed for modular CombiLine configurations, it helps streamline procurement, shorten panel build times, and improve reliability across manufacturing and energy-management applications.
Product Information
Extended Description
2CPX044260R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, rated current maximum 800 A
Rated Current (In)
800 A
Model Number
Flat
Number of Poles
3P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
Accessories Available
Yes
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
1730.66 mm
Product Net Height
40 mm
Product Net Depth / Length
10 mm
Product Net Weight
9.202 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
9.57 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
The 800 A rated current with a 3P copper busbar enclosure delivers high current capacity with low conduction losses, enabling denser, more reliable fault-tolerant power distribution in CombiLine panels. In practice, this reduces heat buildup and maintenance intervals while supporting scalable automation architectures. The untouched surface finishing accommodates compatible finishing workflows, with an installation-ready profile that simplifies integration into existing switchgear and allows rapid commissioning. With available accessories and mounting instructions ZX2610-33, you can tailor the solution to your panel footprint, improving installation efficiency and minimizing back-charges from custom fabrication. The component’s RoHS and REACH compliance, plus WEEE categorization and DIN standards alignment, reduce regulatory risk and streamline supplier qualification. Its unassembled nature provides system integrators the flexibility to tailor conductor layouts and busbar spacing for optimized current paths. Compact dimensions and a substantial net weight deliver a stable mechanical profile, improving panel rigidity and service life under dynamic load conditions.
Get a Quick Quote for a ABB 2CPX044260R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044260R9999?
Enquire Now
FAQs
Install the 2CPX044260R9999 as a modular copper busbar in your CombiLine distribution panel using the ZX2610-33 mounting instructions. Ensure three-phase alignment, proper clearance for current path, and secure bolting with compatible ABB connectors. The unassembled nature allows you to tailor conductor routing and spacing to your panel footprint, improving current distribution and reducing commissioning time.
Key specs include rated current of 800 A, 3P configuration, copper busbar enclosure, and untreated surface. These factors yield low electrical resistance, high current carrying capacity, and robust three-phase distribution. The slim 40 mm height and 1730.66 mm width support dense layouts, minimizing footprint while maintaining efficient heat management in high-demand automation systems.
Ideal for industrial automation, manufacturing lines, energy management, and process industries that require reliable 3-phase power distribution. Its CombiLine compatibility supports modular panel architectures, while RoHS/REACH compliance simplifies procurement for regulated environments and reduces risk in regulated supply chains.
The busbar aligns with CE declarations, RoHS (Directive 2011/65/EU and Amendment 2015/863), REACH declarations, and DIN 43673-1 busbar standards, plus WEEE classification. This ensures regulatory compliance, easier supplier qualification, and safer end-of-life handling, which is crucial for audited environments and long-term maintenance planning.
With robust RoHS/REACH compliance, modular assembly, and ABB accessory compatibility, the 2CPX044260R9999 reduces procurement complexity and installation time. The high current capacity and reliable copper conduction translate to lower maintenance costs, fewer field reties, and improved panel uptime, yielding favorable total cost of ownership over the system lifecycle.
