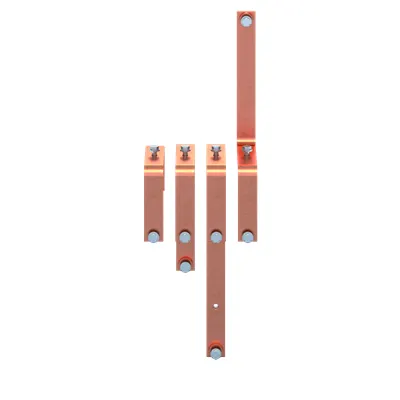

ABB 2CPX044261R9999 Copper Busbar - DIN 43673-1
Part Number: 2CPX044261R9999
Quick Summary
ABB 2CPX044261R9999 copper busbar powers high-current modular distribution panels for industrial electrical systems. Designers often struggle with space constraints, assembly time, and regulatory compliance when selecting busbar components. This solution carries CE conformity with EU Declaration of Conformity, RoHS compliance under EU Directive 2011/65/EU and Amendment 2015/863, and REACH declarations to help reduce supplier risk. Its rugged yet flexible design supports CombLine modular distribution panels, enabling faster integration, simpler maintenance, and consistent performance across electrical installations. By prioritizing a robust chassis and documented standards, ABB delivers a reliable path to efficient power distribution in manufacturing environments, data centers, and automation cells.
Product Information
Extended Description
2CPX044261R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, rated current maximum 800 A
Rated Current (In)
800 A
Model Number
Flat
Number of Poles
4P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
Accessories Available
Yes
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
2326.38 mm
Product Net Height
40 mm
Product Net Depth / Length
10 mm
Product Net Weight
13.62 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
14.165 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
ABB 2CPX044261R9999 is a copper busbar designed for high-current distribution in CombLine modular panels. Feature → Business Impact → Application: Rated Current of 800 A ensures fewer parallel bars and simplified panel design, reducing installation time and potential fault points in drives and switchgear applications. Feature → Business Impact → Application: 4P configuration supports multi-line branching in compact footprints, enabling streamlined wiring runs for machine control cabinets and process lines. Feature → Business Impact → Application: Copper busbar enclosure with Untreated surface offers excellent electrical conductivity while allowing integration into custom enclosure environments, supporting on-site finishing where appropriate. Feature → Business Impact → Application: Accessories Available provide mounting options and expandability, accelerating commissioning in retrofit projects and new builds alike. Feature → Business Impact → Application: RoHS, REACH, and WEEE compliance mitigate regulatory risk and simplify procurement for global operations. Feature → Business Impact → Application: Dimensions Product Net Width 2326.38 mm, Height 40 mm, Depth 10 mm enable precise enclosure planning in CombLine systems, reducing misfits and rework. Feature → Business Impact → Application: Mounting Instructions ZX2610-33 support correct installation, improving first-time quality in panel builds. Feature → Business Impact → Application: ETIM and DIN standards alignment ensures compatibility with cataloging and specification workflows, boosting procurement efficiency and traceability.
Get a Quick Quote for a ABB 2CPX044261R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044261R9999?
Enquire Now
FAQs
This busbar is designed for modular CombLine panels and ships not assembled. Use the ZX2610-33 mounting instructions to ensure correct orientation and secure fastening. The 4P configuration supports multiple conductors, and the 800 A rating guides the enclosure sizing and conductor routing to minimize heat buildup and ensure reliable operation.
You can expect robust high-current performance with minimal voltage drop when properly integrated in a 4P configuration. The copper enclosure provides excellent conductivity, while the 2326.38 mm width, 40 mm height, and 10 mm depth facilitate compact, scalable panel layouts suitable for high-demand drives and distribution networks.
Yes. The product includes RoHS information and a REACH declaration indicating no substances above 0.1 mass percent, along with WEEE categorization for compliant disposal. CE conformity is provided via the EU Declaration of Conformity, supporting regulatory compliance across EU markets.
The product is classified under DIN 43673-1 and aligns with ETIM 8/9 as EC001522 - Busbar, with eClass V11.0 27370303. These standards support accurate cataloging, interoperability, and procurement workflows in industrial electrical installations.
Selecting this busbar reduces assembly time through modular, ready-to-install components, lowers regulatory risk with documented RoHS/REACH/WEEE compliance, and improves reliability with a proven 800 A rating in a 4P configuration. The result is faster project timelines, fewer field modifications, and improved total cost of ownership for high-current power distribution.
