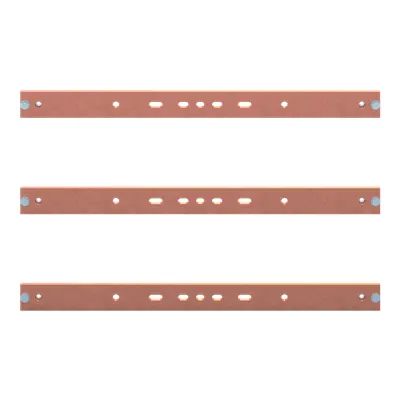

ABB 2CPX044268R9999 Power Busbar - 1000 A DIN 43673-1
Part Number: 2CPX044268R9999
Quick Summary
ABB 2CPX044268R9999 is a copper busbar module designed for high-current modular distribution panels in industrial power systems. When panel space is tight or current spikes threaten equipment, you need reliable, easy-to-install busbars. It carries CE conformity, RoHS compliance, and REACH declarations, helping you meet regulatory audits and minimize risk. Designed for CombiLine modular panels, this copper busbar supports scalable electrical distribution while improving installation efficiency and system uptime. The model uses untreated copper with robust heat handling for 3P configurations and up to 1000 A nominal current, reducing voltage drop across long runs. Installation is straightforward in CombiLine panels, with clear mounting instructions (ZX2690-95) and compatibility with standard ETIM, eClass classifications. This combination supports faster assembly, lowers total cost of ownership, and aligns with WEEE and CMRT reporting.
Product Information
Extended Description
2CPX044268R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 3 = 692 mm, rated current maximum 1000 A
Rated Current (In)
1000 A
Model Number
Flat
Number of Poles
3P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
692 mm
Product Net Height
50 mm
Product Net Depth / Length
10 mm
Section Width
3
Product Net Weight
10.04 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
10.442 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2690-95
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: Rated current up to 1000 A on a 3P copper busbar within a CombiLine modular distribution panel. Business Impact: Enables reliable high-load distribution with minimized conductor losses and reduced voltage drop, helping keep critical machinery online. Application: Industrial power centers, machine rooms, and processing lines where continuous uptime is essential. Feature: Compact footprint of 692 mm width, 50 mm height, and 10 mm depth with Section Width 3. Business Impact: Allows denser panel layouts, saving enclosure space and reducing cabinet footprint. Application: Control panels in tight installations and retrofit projects where space efficiency matters. Feature: Untreated copper surface finishing. Business Impact: Delivers excellent electrical conductivity with cost-effective procurement, while providing clear path to protective enclosure and coating strategies as needed. Application: High-current feeders where performance and cost balance are priorities. Feature: Robust compliance package including RoHS, REACH, CMRT, WEEE, and CE declarations. Business Impact: Improves regulatory readiness, simplifies audits, and supports sustainability reporting. Application: Automotive, automation, and facility power distribution environments requiring traceability. Feature: Mounting instructions ZX2690-95 and ETIM/eClass classifications. Business Impact: Speeds installation, minimizes misconfigurations, and improves cataloging in procurement systems. Application: Fast onboarding for engineering teams and streamlined parts management.
Get a Quick Quote for a ABB 2CPX044268R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044268R9999?
Enquire Now
FAQs
Begin by verifying panel dimensions align with a 692 mm width and 3P configuration. Use the ZX2690-95 mounting instructions for correct placement, ensure clean, undamaged copper surfaces, and couple with compatible busbar supports. The installation should minimize bending and ensure secure clamping to maintain low resistance paths and reliable current flow.
Rated current is up to 1000 A, configured as a 3P copper busbar. It is compatible with CombiLine modular distribution panels, designed for high-current feeders. The surface is untreated copper, which offers excellent conductivity, while RoHS and REACH declarations ensure regulatory compliance for industrial installations.
Ideal for high-load distribution in manufacturing lines, process automation, and data-processing facilities. Its 692 mm width and 3P copper construction support scalable power distribution within compact panel footprints, enabling dense installations in control rooms, machine centers, and utility rooms where uptime and current integrity matter most.
The product carries CE conformity documentation, RoHS and REACH declarations, WEEE categorization, and CMRT reporting. DIN 43673-1 classification confirms compatibility with standard European busbar practices, and ETIM/eClass references help with cataloging in procurement systems.
The copper busbar delivers low resistance and efficient current handling, reducing heat buildup and maintenance needs in demanding environments. The RoHS/REACH compliance supports long-term regulatory stability, while ZX2690-95-enabled mounting reduces commissioning time and supports predictable lifecycle costs for modular power distribution.
