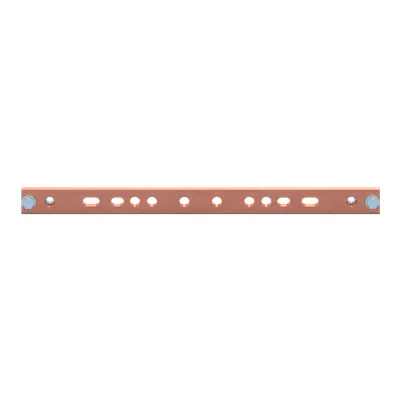

ABB 2CPX044269R9999 Power Busbar - DIN 43673-1
Part Number: 2CPX044269R9999
Quick Summary
ABB 2CPX044269R9999 power busbar enables compact, high-current distribution in CombiLine panels. Engineers frequently struggle with space constraints and unreliable connections in high-power enclosures. This unit provides 630 A rated current, 442 mm panel width, and CE, RoHS, and REACH compliance, delivering dependable performance. With a copper busbar and modular layout, it supports scalable configurations, faster installation, and lower lifecycle costs for industrial automation projects. Designed for ABB CombiLine modular distribution panels, installation is straightforward, reducing commissioning time and field errors. This combination of robust ratings and industry-standard compliance helps procurement teams meet global regulatory requirements without compromising performance.
Product Information
Extended Description
2CPX044269R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 2 = 442 mm, rated current maximum 630 A
Rated Current (In)
630 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
442 mm
Product Net Height
30 mm
Product Net Depth / Length
10 mm
Section Width
2
Product Net Weight
1.9 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.976 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature → Business Impact → Application: 630 A rated current and 1P copper busbar enable high-current power routing with minimal voltage drop, improving overall panel efficiency and reducing heat-related losses in everyday operations. This translates to more reliable motor control and shorter downtime in critical manufacturing lines, particularly where space is at a premium in CombiLine modular distribution panels. Feature → Business Impact → Application: A 442 mm panel width and dimensions of 30x442x10 mm optimize cabinet layout, allowing denser wiring and easier traceability while maintaining serviceability for spare parts and maintenance teams. Feature → Business Impact → Application: Copper busbar with an Untreated surface keeps costs low while delivering excellent conductivity; in controlled indoor environments, teams can rely on this construction for consistent performance and predictable maintenance schedules. Feature → Business Impact → Application: Regulatory compliance (RoHS, REACH, CE) reduces procurement risk across global deployments, facilitating audits and interdepartmental coordination during rollouts. Feature → Business Impact → Application: Structural and installation support is enhanced by the provided mounting instructions ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N, enabling faster, error-proof assembly in ABB CombiLine configurations. Industry insights: Engineers benefit from standardized ETIM and eClass classifications, aiding procurement systems and cross-brand compatibility, while DIN 43673-1 alignment reinforces compatibility with industry-accepted busbar specifications.
Get a Quick Quote for a ABB 2CPX044269R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044269R9999?
Enquire Now
FAQs
The 2CPX044269R9999 is designed for ABB CombiLine modular distribution panels. It features a 442 mm width, 30x442x10 mm footprint, and 1P configuration, aligning with the standard ABB mounting schemes. For precise mounting, refer to ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N installation instructions to ensure correct alignment and secure connections during panel assembly.
Key specs include a 630 A rated current, 1P configuration, copper busbar enclosure, and an Untreated surface. Dimensions are 442 mm in width with a 30 mm height and 10 mm depth, delivering a compact footprint suitable for modular distribution panels. The product net weight is approximately 1.9 kg, aiding in precise enclosure weight budgeting.
The busbar features an Untreated copper surface, intended primarily for internal panel use. For harsh or outdoor environments, consider applying a protective coating or mounting within a sealed enclosure to prevent oxidation and ensure long-term reliability. Always follow the mounting and protection guidelines in the CombiLine installation documentation.
The busbar carries CE conformity, RoHS information and status aligned with EU directives, and a REACH declaration. It is listed under WEEE category 5 and supports related CMRT reporting. ETIM classifications (EC001522 - Busbar) and eClass V11.0: 27370303 help with cross-brand procurement and cataloging.
Installation benefits come from documented mounting instructions and a modular design that speeds assembly and reduces field errors in CombiLine configurations. The high current rating enables reliable performance for critical loads, potentially reducing downtime and maintenance costs. Its standardized compliance and compact footprint also simplify global procurement and inventory management.
