ABB 2CPX044275R9999 Busbar - 630 A CombiLine DIN 43673-1
Part Number: 2CPX044275R9999
Quick Summary
ABB 2CPX044275R9999 Busbar enables compact copper distribution in modular CombiLine panels for control cabinets. Engineers often battle space constraints, current-carrying limits, and the need to maintain regulatory compliance during upgrades. This busbar aligns with CE conformity, RoHS and REACH declarations, and DIN 43673-1 standards, supporting reliable performance in European assemblies. Designed for modular distribution work, it delivers installation efficiency, predictable current handling, and a streamlined path to compliant, scalable power distribution in industrial environments.
Product Information
Extended Description

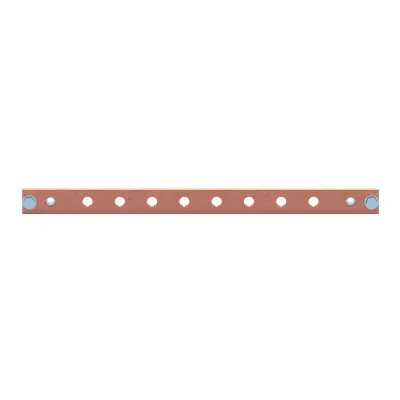

2CPX044275R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 2 = 442 mm, rated current maximum 630 A
Rated Current (In)
630 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
442 mm
Product Net Height
30 mm
Product Net Depth / Length
5 mm
Section Width
2
Product Net Weight
1.25 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.3 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature 1: Rated Current 630 A in a 1P copper busbar. Business Impact: Supports high-load distribution with minimal voltage drop, enabling lighter cabinet designs and longer intervals between maintenance. Application: Ideal for single-pole feeders within 442 mm-wide CombiLine panels in control cabinets. Long-tail keywords addressed: high-current busbar, copper distribution, 1P busbar. Feature 2: Dimensions 442 mm width x 30 mm height x 5 mm depth. Business Impact: Delivers a compact footprint that frees rack space and simplifies panel layouts. Application: Suitable for tight installations in modular distribution panels and new builds. Feature 3: Untreated copper surface. Business Impact: Enables flexible field finishing or pre-treatment by system integrators while preserving low resistance. Application: Field-installation scenarios and custom mounting configurations. Feature 4: Compliance stack RoHS, REACH, WEEE, and DIN 43673-1. Business Impact: Reduces regulatory risk and streamlines procurement across European operations. Application: Compliance-driven designs for regulated industrial environments. Feature 5: Mounting and packaging details (CombiLine, panel not assembled, ZX2720-.... ZX2760-..61). Business Impact: Accelerates integration with documented mounting instructions and standardized panel interfaces. Application: System integrator workflows for fast deployment. Feature 6: Weight and handling (1.25 kg). Business Impact: Lower shipping and handling costs with a compact, easy-to-manoeuvre component. Application: Logistics planning for large-scale panel builds.
Get a Quick Quote for a ABB 2CPX044275R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044275R9999?
Enquire Now
FAQs
The busbar is designed for 442 mm panel width and 30 mm height, aligning with CombiLine modular panels. It ships as a component ready for integration with ZX2720-..25 ZX2740-..45 ZX2760-..61 mounting instructions, enabling straightforward enclosure assembly and predictable fit within existing cabinet footprints.
Rated current is 630 A, 1P, copper busbar. This capacity supports high-load feeder circuits while maintaining low resistance, reducing conductor count and enabling more compact, cost-efficient panel layouts without compromising safety or performance.
Yes. The 442 mm width and 30 mm height dimensions optimize space in modular distributions, while the copper construction ensures low impedance. It is particularly suited to CombiLine panels where modularity and streamlined assembly are priorities.
The product is associated with CE conformity, RoHS and REACH declarations, WEEE classification, and DIN 43673-1 standards. It also references ETIM 8/9 classifications and related declarations for European regulatory alignment.
Benefits include regulatory peace of mind, reduced wiring complexity, and faster installation thanks to standardized dimensions and mounting guidance. With a weight of 1.25 kg and a compact footprint, logistics costs are also minimized across multi-unit deployments.
