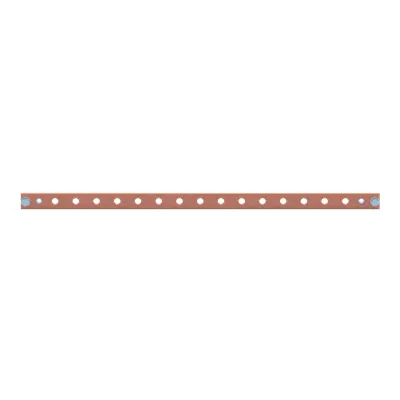

ABB 2CPX044278R9999 Busbar - 630 A Copper, CE
Part Number: 2CPX044278R9999
Quick Summary
ABB 2CPX044278R9999 Busbar is a copper busbar solution for modular distribution panels, enabling reliable 630 A distribution. Engineers often contend with space constraints and uneven current sharing in pre-assembled panels. CE, RoHS, and REACH compliance provide safe, traceable installation across European facilities. As a copper busbar with RoHS/REACH declarations and DIN 43673-1 alignment, it simplifies procurement and reduces lifecycle risk. The 30 mm x 692 mm x 5 mm footprint aligns with CombiLine modular panels, optimizing cabinet space. Rated current up to 630 A provides scalable distribution for high-density installations. Manufacturing compliance and traceability are supported by REACH declarations and CMRT documentation. CE conformity supports safe operation across European networks.
Product Information
Extended Description
2CPX044278R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 3 = 692 mm, rated current maximum 630 A
Rated Current (In)
630 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
692 mm
Product Net Height
30 mm
Product Net Depth / Length
5 mm
Section Width
3
Product Net Weight
2.838 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.952 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
Feature: Rated current of 630 A enables single-busbar distribution in 1P configurations, reducing the need for multiple parallel conductors. Business Impact: Improves space efficiency and lowers material costs while maintaining high current capacity. Application: Ideal for CombiLine N modular distribution panels in compact industrial cabinets. Feature: Copper busbar with Untreated surface; Business Impact: Lower total cost of ownership by avoiding unnecessary plating where corrosion risk is manageable; Application: Short-to-medium life cycles in controlled environments. Feature: Comprehensive material compliance including RoHS, REACH, CMRT, and WEEE declarations; Business Impact: Fast regulatory approvals and reduced risk in European deployments; Application: New builds and retrofits requiring strict compliance. Feature: Dimensions and footprint 692 mm width, 30 mm height, 5 mm depth, Section Width 3; Business Impact: Aligns precisely with 692 mm wide CombiLine panels to maximize cabinet real estate; Application: Modular panel installations with tight spatial constraints. Feature: Mounting guidance and standards alignment including DIN 43673-1 and ETIM classifications; Business Impact: Streamlined installation with predictable compatibility; Application: Industrial automation projects requiring documented standards. Feature: Packaging and weight details (Product Net Weight 2.838 kg, Package Level 1 gross weight 2.952 kg); Business Impact: Accurate logistics planning and reduced handling risk; Application: Site-wide procurement and inventory management.
Get a Quick Quote for a ABB 2CPX044278R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044278R9999?
Enquire Now
FAQs
The busbar is designed for CombiLine N modular panels. Follow ZX mounting instructions ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N to ensure correct alignment. Ensure the panel width matches 692 mm and the section width is 3 to maintain proper current distribution. Use the DIN 43673-1 compliant mounting practices for secure electrical connections and vibration resistance.
Key specs include a rated current of 630 A, 1P (one pole), copper busbar enclosure, and an untreated surface. The physical footprint is 30 mm in height, 692 mm in width, and 5 mm in depth, with a section width of 3. These parameters support integration into CombiLine N modular panels for high-density power distribution.
Yes. It carries CE declarations and RoHS/REACH compliance, with CMRT documentation and WEEE categorization. These certifications support compliant procurement, environmental responsibility, and streamlined conformity assessments in European facilities, reducing time-to-operation for new installations.
The product aligns with DIN 43673-1 and ETIM classifications EC001522 for Busbar. It also carries CE conformity, RoHS information and status with a REACH declaration. This certification suite supports regulatory compliance, reliability, and interoperability within ABB CombiLine modular distribution systems.
Adopting this 630 A copper busbar reduces space requirements and material complexity in modular panels, cutting assembly time and inventory costs. Its RoHS/REACH compliance lowers regulatory risk, while the DIN and ETIM alignment simplifies sourcing and maintenance, delivering faster project completion and predictable long-term performance in high-density applications.
