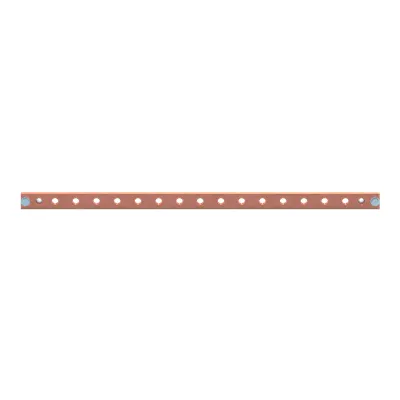

ABB 2CPX044280R9999 Busbar - 1000 A, Copper, CombiLine N
Part Number: 2CPX044280R9999
Quick Summary
ABB 2CPX044280R9999 busbar is a copper distribution solution for modular power panels in industrial automation. Engineers often face space constraints, heat buildup, and lengthy installation when expanding copper busbar layouts. It carries CE conformity, RoHS compliance, and REACH declarations to support regulatory audits and supplier qualification. Designed for CombiLine modular panels, it delivers reliable current handling, fast mounting, and predictable electrical performance, helping reduce downtime. The 692 mm panel width and 3-section layout simplify field planning, cut installation time, and support scalable upgrades as load demands grow. Its untouched surface finish and RoHS-referenced materials support long service life while preserving ease of maintenance in harsh industrial environments.
Product Information
Extended Description
2CPX044280R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, panel width 3 = 692 mm, rated current maximum 1000 A
Rated Current (In)
1000 A
Model Number
Flat
Number of Poles
1P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
692 mm
Product Net Height
30 mm
Product Net Depth / Length
10 mm
Section Width
3
Product Net Weight
3.848 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
4.002 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
High-current capability: The busbar is rated for 1000 A, delivering robust performance for feeders and main distribution in compact spaces. This translates to lower system resistance, improved thermal management, and reduced risk of overheating during peak loads, which lowers maintenance downtime and extends component life. It fits modular CombiLine distribution panels, enabling quick integration with existing ABB infrastructure, standard copper busbar components, and common field-installation practices, supporting reliable operation in harsh industrial environments. Space optimization and modularity: The 692 mm panel width with a 3-section layout improves space utilization, accelerates wiring, and streamlines future expansions. This configuration is ideal for retrofit projects and new builds in control cabinets and switchgear, where reliable current paths must be added with minimal disruption. The included mounting instructions ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N support rapid, compliant installation and reduce on-site errors, while enabling predictable thermal performance. Material compliance and finish: Untreated copper surface keeps cost down while maintaining compatibility with standard busbar accessories and protective coatings. RoHS information confirms the absence of restricted substances per EU directive, and REACH declarations attest to regulatory compliance. WEEE categorization and CE declaration simplify end-of-life planning, audits, and supplier qualification, helping procurement teams meet sustainability targets and streamline recycling processes. Standards and interoperability: ETIM 8/9 EC001522 - Busbar, eClass V11.0 27370303, and DIN 43673-1 align with industry classifications for seamless cataloging, procurement, and cross-vendor compatibility. The product net dimensions and weights—692 mm width, 30 mm height, 10 mm depth; 3.848 kg net—help engineers model panel space, cooling needs, and structural support during design reviews. This 1P copper busbar is designed to integrate with ABB CombiLine modules and widely used copper busbar accessories. Installation and maintenance readiness: The 1P copper busbar and 692 mm width fit standard CombiLine assemblies, reducing field modification and commissioning time. Its surface finishing and documented mounting instructions support fast, predictable commissioning and long-term reliability in harsh environments. With RoHS/REACH compliance and CE declarations, you gain confidence in long-term spare parts availability and reduced total cost of ownership.
Get a Quick Quote for a ABB 2CPX044280R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044280R9999?
Enquire Now
FAQs
The busbar is designed for 692 mm wide CombiLine panels and a 1P copper busbar configuration. It integrates with ABB mounting schemes ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N and uses standard copper busbar components, helping minimize adaptation work. Expect straightforward alignment with existing panel rails and connectors, reducing install time by dozens of minutes per module.
With a 1000 A rating, the busbar supports high-load feeders with controlled thermal rise. In practice, this reduces voltage drop and overheating risk in peak conditions, improving reliability and uptime. The 692 mm width and 3-section layout also facilitate efficient heat dissipation and organized phasing in compact control cabinets.
The product includes a EU Declaration of Conformity (CE), RoHS information, REACH declaration, and WEEE categorization. DIN 43673-1 alignment and ETIM class EC001522 ensure consistent cataloging, while eClass V11.0 27370303 supports cross-vendor interoperability and audit-ready documentation.
Plan for a CombiLine-compatible 692 mm panel width and a 1P copper busbar. Follow mounting instructions ZX2720-..25_ZX2740-..45_ZX2760-..61_MBX..N, ensure surface finish compatibility, and verify weight (net 3.848 kg, gross 4.002 kg) for panel structural support. Verify RoHS and REACH compliance in the final panel bill of materials.
High current capability and robust copper construction reduce downtime and replacement cycles in high-demand panels. Fast mounting, standardized ABB components, and clear documentation translate to lower labor costs and faster commissioning. Long-term reliability in harsh environments minimizes spare parts inventory and supports lower total cost of ownership.
