ABB 2CPX044286R9999 Power Busbar - RoHS CE Compliant
Part Number: 2CPX044286R9999
Quick Summary
Power Busbar from ABB 2CPX044286R9999 enables high-current distribution in modular electrical panels. Engineers often struggle with space constraints and heat buildup in compact switchgear, making reliable current paths critical. This solution carries RoHS and CE conformity, REACH compliance, and a DIN 43673-1 designation to align with industry standards. Designed for CombiLine modular panels, it helps shorten installation times while enabling scalable expansions. Coupled with ABB mounting guidelines ZX2783-85_ZX2813-15_ZX3813-15, it delivers predictable performance and long-term savings in power management.
Product Information
Extended Description

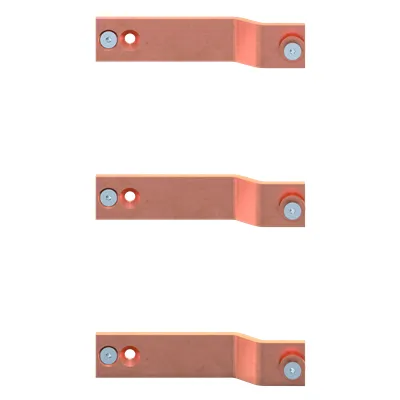

2CPX044286R9999 ABB: Copper busbar, CombiLine, Modular distribution panel not assembled, rated current maximum 1000 A
Rated Current (In)
1000 A
Model Number
Flat
Number of Poles
3P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
252.91 mm
Product Net Height
50 mm
Product Net Depth / Length
10 mm
Product Net Weight
5.148 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
5.354 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2783-85_ZX2813-15_ZX3813-15
ETIM 8
EC000713 - Busbar coupler
ETIM 9
EC000713 - Busbar coupler
eClass
V11.0 : 27400606
Object Classification Code
U
Standards
DIN 43673-1
Feature: Rated current up to 1000 A and a 3P configuration. Business Impact: Enables reliable high-load distribution with minimal voltage drop, improving overall panel efficiency. Application: suitable for industrial power distribution boards and control panels where space is at a premium and performance matters. Feature: Copper busbar enclosure and robust thermal path. Business Impact: provides low resistive losses and enhances heat dissipation, reducing the risk of hotspot formation. Application: used in switchgear assemblies requiring durable, long-life current paths in challenging environments. Feature: Compact dimensions—252.91 mm width, 50 mm height, 10 mm depth—with a weight around 5.148 kg. Business Impact: enables tighter panel layouts and easier routing in crowded electrical cabinets, cutting installation time. Application: ideal for modular CombiLine configurations where space is constrained. Feature: Untreated surface finishing. Business Impact: simplifies material handling and mounting in pre-assembled workflows, while requiring appropriate protective measures during installation. Application: aligns with factory assembly processes and standard mounting practices. Feature: Regulatory compliance suite—RoHS, CE, REACH, plus DIN 43673-1. Business Impact: reduces regulatory risk and streamlines procurement across global sites. Application: suitable for multinational manufacturing environments and standards-driven projects.
Get a Quick Quote for a ABB 2CPX044286R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044286R9999?
Enquire Now
FAQs
The busbar is designed for CombiLine modular panels and ships as a non-assembled component. Follow ABB mounting instructions ZX2783-85, ZX2813-15, and ZX3813-15 to align the copper path with the panel frame. Ensure proper isolation, cleanliness, and torque specs during assembly to maintain electrical integrity and avoid heat build-up.
The 2CPX044286R9999 busbar supports up to 1000 A in a 3P configuration. It uses a copper busbar enclosure with an untreated surface, optimized for high-current distribution within compact modular panels. This makes it suitable for heavy-load sections of power management systems and distribution panels.
Yes. It carries RoHS information and CE conformity through the EU Declaration of Conformity for the Distribution Panel System CombiLine N, plus REACH declarations indicating no substances above 0.1 mass percentage. WEEE categorization is addressed, supporting compliant disposal and end-of-life planning in multinational facilities.
Designed for CombiLine modular distribution panels, the 2CPX044286R9999 pairs with ABB's mounting guidelines and the busbar coupler ETIM classifications. Its 252.91 mm width, 50 mm height, and 10 mm depth provide a compact, scalable current path. Check ETIM 8/9 EC000713 and DIN 43673-1 to ensure compatibility with your panel design.
Product net width is 252.91 mm, net height 50 mm, and net depth 10 mm, with a net weight of 5.148 kg. Package level 1 units are single pieces with a gross weight of 5.354 kg. These metrics help with panel layout, shipment sizing, and inventory planning for modular distributions.
