2CPX044388R9999
Part Number: 2CPX044388R9999
Product Information
Extended Description

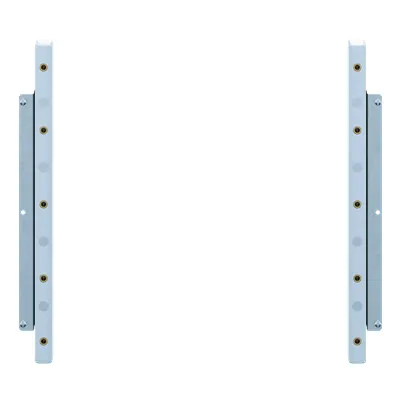

2CPX044388R9999 ABB: Busbar holder, CombiLine, mounted in cabinet, rated current maximum 1000 A
Rated Current (In)
1000 A
Number of Poles
3P
Enclosure Type
Busbar holder
Material
Plastic
Color
Grey (mouse grey)
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
caf0897b-07f0-4866-a5dc-7b129ed3c4b2 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
430 mm
Product Net Height
45.5 mm
Product Net Depth / Length
30.5 mm
Product Net Weight
1.476 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.535 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
