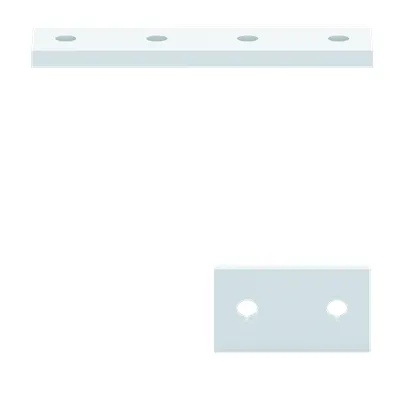

ABB 2CPX044411R9999 Busbar Holder - 800 A, 4P CE
Part Number: 2CPX044411R9999
Quick Summary
ABB 2CPX044411R9999 busbar holder is designed for reliable power distribution within CombiLine modular panels. It secures heavy busbars in tight spaces, delivering precise alignment and vibration resistance for demanding installations. Engineers often struggle with space constraints, misalignment, and extended commissioning times in modular panel builds; this holder addresses those pain points with a center distance of 185 mm that ensures consistent mounting clearance and safe operation. The product carries an EU Declaration of Conformity for CE, RoHS compliance, and a REACH declaration, keeping projects compliant across regions and supplier audits. By combining robust electrical performance with straightforward installation and a lightweight plastic enclosure, it minimizes assembly effort and material waste. In practice, these attributes translate into faster setups, lower maintenance costs, and improved uptime within ABB’s CombiLine ecosystem.
Product Information
Extended Description
2CPX044411R9999 ABB: Busbar holder, CombiLine, Modular distribution panel not assembled, Busbar center distance: 185 mm, rated current maximum 800 A
Rated Current (In)
800 A
Model Number
Fastening parts/-set
Number of Poles
4P
Enclosure Type
Busbar holder
Material
Plastic
Color
Grey (mouse grey)
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
202 mm
Product Net Height
50 mm
Product Net Depth / Length
10 mm
Product Net Weight
0.629 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.654 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Feature: Rated current of 800 A. This capability supports heavy power distribution through a compact busbar holder, reducing the need for multiple parallel components and lowering total panel footprint. Application: 4P configurations within ABB CombiLine modular distribution systems demand reliable current paths and straightforward assembly in tight spaces. The business impact is measurable as reduced panel size, simpler wiring, and faster commissioning. Feature: Four poles and compact dimensions (202 mm width, 50 mm height, 10 mm depth). The 4P arrangement provides a balanced current path, while the slim profile fits tight enclosures, minimizing modification needs. This translates to standardized inventory and easier maintenance across multi-panel installations. Application: use in factory automation cabinets and industrial distribution racks to streamline design and build cycles.
Get a Quick Quote for a ABB 2CPX044411R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044411R9999?
Enquire Now
FAQs
Yes. The 2CPX044411R9999 is a busbar holder built for ABB CombiLine modular distribution systems. It uses a center distance of 185 mm and a width of 202 mm with a height of 50 mm, designed to fit standard 4P busbar configurations. Mounting instructions ZX2610-33 are provided to ensure correct alignment and secure attachment.
The component is rated for 800 A and configured as a 4P (four-pole) busbar holder. It is constructed from plastic for non-conductive protection and lighter weight, and it supports the CombiLine modular panel ecosystem with precise 185 mm center distance to align adjacent modules and busbars reliably.
Yes. The product carries RoHS information with the EU Directive 2011/65/EU and Amendment 2015/863 and a REACH declaration. It specifies that it does not contain substances above 0.1 mass percent and is accompanied by a REACH declaration, ensuring regulatory compliance across manufacturing and installation sites.
Ideal for industrial automation and factory power distribution, particularly in data centers and manufacturing lines using ABB CombiLine modular distribution panels. Its 800 A rating and 4P configuration support high-current paths in compact cabinets, while the 185 mm center distance ensures scalable assembly across multi-module assemblies.
The lightweight plastic enclosure and compact dimensions simplify handling and installation, reducing commissioning time and ergonomic strain. CE, RoHS, and REACH compliance streamline audits, and the standardized 4P design helps unify maintenance routines, lowering long-term lifecycle costs and improving uptime in automated facilities.
