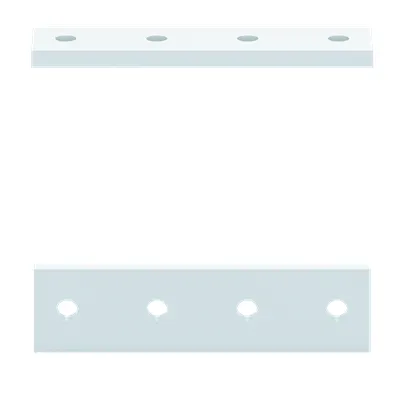

ABB 2CPX044412R9999 Busbar Holder - 4P 800A RoHS
Part Number: 2CPX044412R9999
Quick Summary
ABB 2CPX044412R9999 Busbar Holder is a high-density component that enables compact, reliable distribution in control cabinets and switchgear. Engineers often struggle with spacing and current path integrity in modular panels; this part offers precise fit and robust mounting to solve those challenges. It carries RoHS and REACH compliance with CE Declaration of Conformity, assuring regulatory alignment across EU markets and supplier audits. By aligning with CombiLine modular distribution panels, it helps streamline procurement and reduces retrofit time, delivering safer installations and predictable maintenance cycles for power management systems. With 800 A rating, 185 mm center distance, and a compact 50 x 202 x 10 mm footprint, it integrates easily into existing ABB ecosystems.
Product Information
Extended Description
2CPX044412R9999 ABB: Busbar holder, CombiLine, Modular distribution panel not assembled, Busbar center distance: 185 mm, rated current maximum 800 A
Rated Current (In)
800 A
Model Number
Fastening parts/-set
Number of Poles
4P
Enclosure Type
Busbar holder
Material
Plastic
Color
Grey (mouse grey)
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
202 mm
Product Net Height
50 mm
Product Net Depth / Length
10 mm
Product Net Weight
0.702 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.73 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
The 800 A nominal rating with a 4P configuration enables high-current distribution in a compact footprint, reducing enclosure depth and panel count. Practically, this delivers safer current paths, tighter spacing, and improved thermal management in power distribution applications. The 185 mm center distance supports modular stacking across CombiLine panels, while the 50 x 202 x 10 mm footprint preserves rack width for other components. The design facilitates straightforward installation with included fastening parts and the ZX2610-33 mounting guidance, reducing commissioning time. Core benefits include regulatory compliance (RoHS CE REACH), reproducible assembly across channels, and a scalable footprint that fits dense panel stacks while maintaining safety margins. This is especially valuable during audits and when integrating with existing ABB infrastructure. Additional advantages include lightweight plastic enclosure with suitable insulating properties and grey aesthetics that resist wear in demanding environments.
Get a Quick Quote for a ABB 2CPX044412R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044412R9999?
Enquire Now
FAQs
The ABB 2CPX044412R9999 Busbar Holder is designed for 4P CombiLine modular distribution panels with a 185 mm center distance. It supports up to 800 A and uses standard fastening hardware; fastening parts are included as a set, and installation follows ZX2610-33. It integrates with ABB distribution components to deliver repeatable, safe assemblies across multiple panel rows.
Key specifications include a rated current of 800 A, 4 poles, and a center distance of 185 mm, with a plastic enclosure in grey. The footprint is compact at 50 mm x 202 mm x 10 mm, aiding space planning in dense panels. It is intended for compatibility with CombiLine modular distributions and standard fastening sets to ensure consistent performance.
Yes. The part carries RoHS and REACH compliance, with a CE Declaration of Conformity as part of the package. It also aligns with WEEE considerations and is traceable through the provided documentation. This simplifies audits and supplier certification processes while ensuring regulatory alignment across European markets.
It is ideal for high-current power management in control cabinets, switchgear, and modular distribution panels, particularly when using CombiLine. The 185 mm center distance supports scalable layouts, and the 800 A rating ensures robust performance for demanding industrial installations with predictable maintenance requirements.
Follow the ZX2610-33 mounting instructions and use the included fastening parts/-set for consistent alignment. Ensure proper clearance and safe current paths in the panel. The packaging notes unit packaging (pack 1 piece) and a modest 0.73 kg gross weight, aiding logistics and lifecycle planning during upgrades or new builds.
