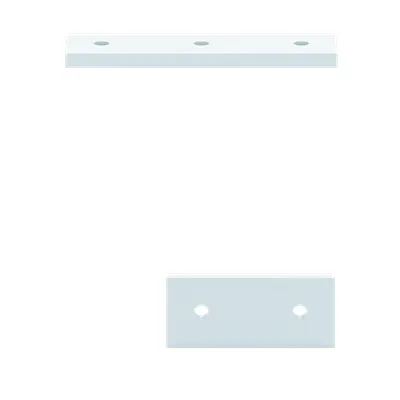

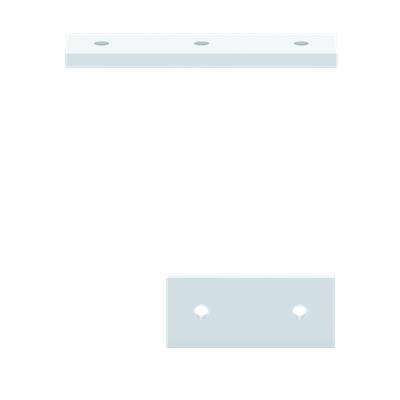

ABB 2CPX044413R9999 Busbar Holder - 800 A CE
Part Number: 2CPX044413R9999
Quick Summary
ABB 2CPX044413R9999 busbar holder is a modular distribution component designed for high-current power panels in industrial automation. It addresses common challenges in expanding CombiLine systems, such as misalignment, maintenance downtime, and wiring complexity. This part carries CE conformity, RoHS compliance, and REACH declarations to support regulatory compliance in harsh plant environments. Built for a 3P configuration with up to 800 A rated current, it uses a durable grey plastic enclosure and precise mounting to simplify installation and future scalability. By leveraging compatible fasteners and standardized center spacing, engineers can reduce assembly time, improve safety, and lower total cost of ownership.
Product Information
Extended Description
2CPX044413R9999 ABB: Busbar holder, CombiLine, Modular distribution panel not assembled, Busbar center distance: 185 mm, rated current maximum 800 A
Rated Current (In)
800 A
Model Number
Fastening parts/-set
Number of Poles
3P
Enclosure Type
Busbar holder
Material
Plastic
Color
Grey (mouse grey)
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
190 mm
Product Net Height
50 mm
Product Net Depth / Length
10 mm
Product Net Weight
0.706 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.734 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Feature: Rated current of 800 A enables reliable high-current distribution in ABB CombiLine panels. Business Impact: engineers gain safety margin and reduced thermal risk, improving uptime in critical feeders. Application: the 3P arrangement supports multi-branch feeds in modular distribution panels used in manufacturing lines. Feature: Center distance of 185 mm between busbars ensures compact, scalable layouts. Business Impact: simplifies rack design and minimizes panel footprint, reducing enclosure width and installation time. Application: ideal for modular distribution with standardized mounting hardware in power management systems. Feature: Plastic enclosure with grey coloring provides a non-conductive, lightweight housing that eases handling during assembly. Business Impact: improves on-site safety and reduces installation fatigue while offering corrosion resistance in indoor cabinets. Application: suitable for internal CombiLine assemblies and space-constrained panels. Feature: RoHS and REACH compliance, plus a declared EU conformity for distribution panels. Business Impact: mitigates regulatory risk and simplifies maintenance planning across EU operations. Application: essential for regulated industrial facilities. Feature: Compact dimensions and weight—190 mm width, 50 mm height, 10 mm depth, 0.706 kg net weight. Business Impact: space-saving design enables tighter packing and reduced transport costs. Application: ideal where panel real estate is premium and modularity is required. Installation Support: Mounting instruction ZX2610-33 enhances installation accuracy and repeatability, cutting commissioning time and error rates.
Get a Quick Quote for a ABB 2CPX044413R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044413R9999?
Enquire Now
FAQs
Installation requires aligning the busbar holder to the CombiLine panel with the proper fasteners specified for 3P assemblies. Use the ZX2610-33 mounting instructions to ensure correct orientation, center spacing of 185 mm, and securement. Verify electrical clearance and confirm the rated current matches your feeder design to prevent overheating or misalignment during service.
Key specs include a rated current of 800 A, 3P configuration, center distance of 185 mm, and product net dimensions of 190 mm (width) by 50 mm (height) by 10 mm (depth). Net weight is 0.706 kg. These figures define compatibility with high-current CombiLine panels and space planning in the enclosure.
Yes, it features RoHS compliance with EU Directive 2011/65/EU and Amendment 2015/863, and a REACH declaration indicating no substances above 0.1% mass. An EU Declaration of Conformity is provided for CE compliance, and the WEEE category indicates product handling guidance at end of life.
Best suited for high-current power distribution in ABB CombiLine modular panels. It fits 3P configurations and supports compact layouts due to the 185 mm center distance. Typical uses include machine control cabinets, switchgear feeders, and automated manufacturing lines where quick assembly and reliable current handling are critical.
The busbar holder reduces installation time due to standardized mounting and center spacing, lowering commissioning downtime. Its compliance with RoHS, REACH, and CE helps avoid regulatory delays, while the robust 800 A rating supports reliable operation in demanding environments, reducing maintenance visits and extending panel uptime.
