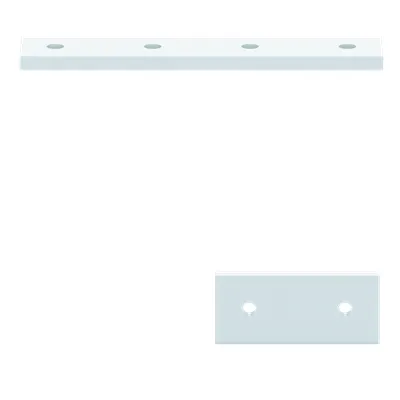

ABB 2CPX044414R9999 Busbar Holder - RoHS Compliant
Part Number: 2CPX044414R9999
Quick Summary
ABB 2CPX044414R9999 is a busbar holder for modular distribution panels in ABB CombiLine systems. Engineers rely on this component to securely anchor high-current busbars in compact panel footprints. The product carries CE declarations, RoHS compliance, and REACH information to support regulatory and environmental requirements, while CMRT and WEEE considerations help with responsible sourcing and end-of-life planning. Designed for modular distribution, it delivers tangible business value by reducing installation time, improving safety, and enabling scalable power routing across growing electrical installations. With an 800 A rating, 4P configuration, and a 185 mm center distance, it pairs well with ABB CombiLine panels to streamline procurement and commissioning in industrial environments.
Product Information
Extended Description
2CPX044414R9999 ABB: Busbar holder, CombiLine, Modular distribution panel not assembled, Busbar center distance: 185 mm, rated current maximum 800 A
Rated Current (In)
800 A
Model Number
Fastening parts/-set
Number of Poles
4P
Enclosure Type
Busbar holder
Material
Plastic
Color
Grey (mouse grey)
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
260 mm
Product Net Height
50 mm
Product Net Depth / Length
10 mm
Product Net Weight
0.687 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.714 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Feature: Rated current up to 800 A with a 4P configuration. Business Impact: Supports high-load power distribution with reduced risk of overheating or voltage drop. Application: Ideal for heavy-duty modular panels in industrial switchgear. The ABB busbar holder enables faster assembly and improved reliability for frequent reconfigurations in growing plants. Application-specific insight shows this design minimizes rework during panel upgrades and expansion projects. Feature: Center distance 185 mm ensures precise alignment within CombiLine frames. Business Impact: Simplifies layout planning and reduces field adjustment time, lowering installation labor costs. Application: Fits modular distribution panels not assembled, accelerating on-site commissioning. Feature: Material is plastic with a grey finish. Business Impact: Lightweight yet durable for safe handling and easier routing in crowded cabinets. Application: Suitable for indoor industrial environments where color-coding and material compatibility matter. Feature: RoHS and REACH compliance with CE declaration. Business Impact: Regulatory assurance lowers risk of non-compliance penalties and streamlines supplier audits. Application: Supports environmentally responsible manufacturing and waste management. Feature: Product dimensions 260 mm W × 50 mm H × 10 mm D; net weight 0.687 kg. Business Impact: Space-efficient footprint and predictable weight distribution improve panel integrity and handling during installation. Application: Fits compact modular panels and supports ergonomic installation. Feature: Mounting instruction ZX2610-33 and compatibility with CombiLine systems. Business Impact: Clear installation guidance reduces error rates and accelerates training. Application: Useful for maintenance crews and OEMs integrating busbars into modular distributions.
Get a Quick Quote for a ABB 2CPX044414R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044414R9999?
Enquire Now
FAQs
Use Mounting Instruction ZX2610-33 as provided; ensure the busbar center distance of 185 mm aligns with adjacent components; the unit is designed for modular distribution panels that are not assembled. Verify 4P configuration and rated current of 800 A before integration to ensure safe and reliable operation within the panel.
Yes. The device supports 4P busbar assemblies and is rated for up to 800 A, making it suitable for high-current power routing in industrial switchgear. Its 185 mm center distance facilitates precise alignment within CombiLine modular frames.
The busbar holder carries a CE declaration of conformity and RoHS compliance, with REACH information indicating no substances above 0.1 mass percentage. CMRT and WEEE considerations support responsible sourcing and end-of-life planning, ensuring regulatory alignment for industrial deployments.
Product Net Width is 260 mm, Net Height is 50 mm, Net Depth is 10 mm, and Net Weight is 0.687 kg. Package Level 1 weight is 0.714 kg. These dimensions support compact integration within modular panels and predictable handling during installation.
Benefits include faster installation due to clear mounting guidance, improved safety from secure high-current busbar retention, and regulatory compliance through RoHS and CE declarations. Its compatibility with CombiLine panels reduces footprint and simplifies future expansions, delivering lower total cost of ownership in ongoing plant upgrades.
