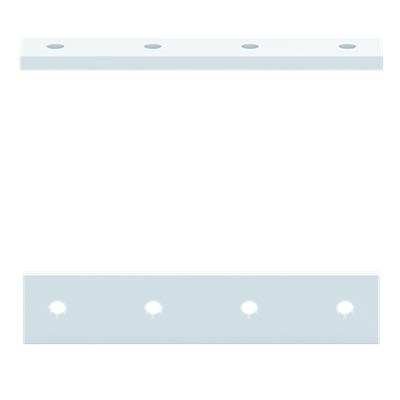

ABB 2CPX044415R9999 Busbar Holder - 800A 4P CE RoHS
Part Number: 2CPX044415R9999
Quick Summary
ABB 2CPX044415R9999 busbar holder enables modular distribution in industrial control panels. In space-constrained cabinets, securing busbars without misalignment is a recurring challenge; this part delivers a precise 185 mm center distance and a rated current of 800 A across 4 poles. It carries CE marking, RoHS compliance, and REACH declarations to support regulatory adherence. Designed for rapid assembly and long-term reliability in demanding environments, it reduces mounting complexity, wiring errors, and maintenance costs while fitting CombiLine modular panels. For engineers and procurement teams, this part combines robust performance with straightforward sourcing and inventory management, supporting faster project timelines and consistent electrical distribution across multi-pole systems.
Product Information
Extended Description
2CPX044415R9999 ABB: Busbar holder, CombiLine, Modular distribution panel not assembled, Busbar center distance: 185 mm, rated current maximum 800 A
Rated Current (In)
800 A
Model Number
Fastening parts/-set
Number of Poles
4P
Enclosure Type
Busbar holder
Material
Plastic
Color
Grey (mouse grey)
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
260 mm
Product Net Height
50 mm
Product Net Depth / Length
10 mm
Product Net Weight
0.919 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.956 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Feature → Business Impact → Application: The 800 A rated current supports large-scale modular distribution without parallel components, reducing bill-of-materials complexity and saving space in high-load panels; Application: suitable for 4P busbar configurations inside CombiLine modular distribution panels. Feature → Business Impact → Application: 4P enclosure type and plastic insulation provide reliable electrical isolation while keeping weight manageable, improving installation ergonomics and traceability; Application: ideal for field and factory mounting in control cabinets. Feature → Business Impact → Application: compact 50 mm x 260 mm x 10 mm footprint enables tight panel layouts and centralized wiring channels, enhancing panel density without compromising accessibility; Application: fits compact control rooms and machine housings. Feature → Business Impact → Application: RoHS, REACH, and CE declarations reduce regulatory risk and support compliance audits; Application: essential for certified manufacturing environments and OEM supply chains. Feature → Business Impact → Application: documented mounting instructions and compatibility with CombiLine streamline procurement and reduce installation time; Application: accelerates project delivery and minimizes commissioning delays.
Get a Quick Quote for a ABB 2CPX044415R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044415R9999?
Enquire Now
FAQs
Plan mounting per ZX2610-33 instructions, ensure the 185 mm busbar center distance is maintained, and verify a 4P configuration. The holder is designed for CombiLine modular panels and should be secured to a compatible backplane to maintain alignment and electrical isolation.
An 800 A rating supports high-current distribution within a single module, reducing the need for parallel busbars and simplifying conductor sizing. This enables a more compact, cost-efficient panel design while maintaining thermal and electrical performance under load conditions common in distribution panels.
Yes. The product is specifically designed for CombiLine modular panels, with a 185 mm center distance and a 4P configuration, ensuring seamless integration, consistent mounting, and reliable electrical connections within modular assemblies.
The holder carries CE marking and RoHS compliance, along with REACH declarations. It adheres to EU directives regarding hazardous substances and has related product conformity documentation to support audits and supplier approvals.
The lightweight plastic enclosure simplifies handling and reduces replacement risk due to corrosion or mechanical wear. Its modular compatibility with CombiLine panels speeds up installation, lowers inventory complexity, and can shorten commissioning time, contributing to lower total cost of ownership.
