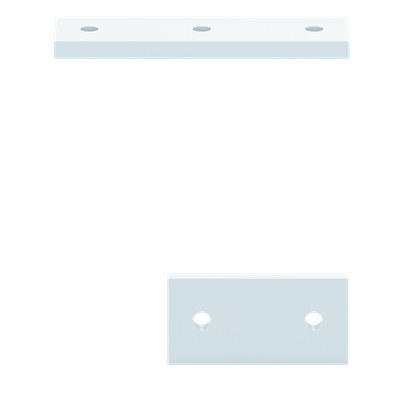

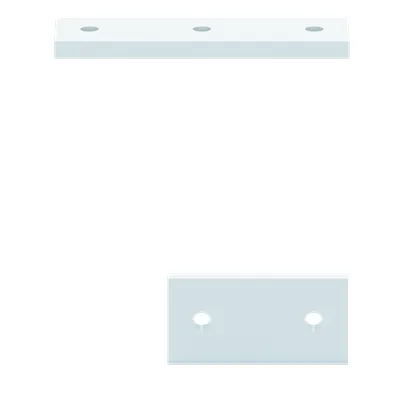

ABB 2CPX044416R9999 Busbar Holder - CE & RoHS Compliant
Part Number: 2CPX044416R9999
Quick Summary
ABB 2CPX044416R9999 Busbar Holder provides modular busbar mounting for ABB CombiLine distribution panels. Engineers often struggle with space constraints and rigid mounting in modular power systems. This unit carries CE Declaration of Conformity, RoHS compliance under EU 2011/65/EU as amended, and REACH declarations, ensuring safe, regulatory-ready installations. With a rated current of 800 A and a compact 50 mm x 170 mm x 10 mm profile, it supports efficient, scalable installations in industrial automation while reducing wiring complexity and maintenance costs. Designed for 3P configurations with a 185 mm center distance, it integrates smoothly with existing CombiLine components and accelerates commissioning in modern control rooms.
Product Information
Extended Description
2CPX044416R9999 ABB: Busbar holder, CombiLine, Modular distribution panel not assembled, Busbar center distance: 185 mm, rated current maximum 800 A
Rated Current (In)
800 A
Model Number
Fastening parts/-set
Number of Poles
3P
Enclosure Type
Busbar holder
Material
Plastic
Color
Grey (mouse grey)
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
170 mm
Product Net Height
50 mm
Product Net Depth / Length
10 mm
Product Net Weight
0.611 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.635 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Feature: Rated current of 800 A and 3P configuration. Business Impact: Enables high-capacity single-point busbar mounting, reducing the need for multiple smaller devices and improving thermal management. Application: Heavy-duty motor control centers and power distribution panels in industrial automation environments. Feature: Center distance of 185 mm. Business Impact: Standardized spacing simplifies layout planning and improves installation accuracy, cutting commissioning time. Application: Modular CombiLine panels requiring precise busbar alignment. Feature: Material and finish—plastic enclosure, grey color. Business Impact: Cost-effective insulation and lightweight handling with good indoor corrosion resistance. Application: Indoor power distribution assemblies in control rooms and switchgear rooms. Feature: Mounting instructions ZX2610-33 and fastening parts/-set. Business Impact: Quick-start mounting with clear guidance reduces field engineering time and error rates. Application: On-site assembly of busbar holders within existing CombiLine modules. Feature: Compliance—CE, RoHS, and REACH declarations. Business Impact: Regulatory risk mitigation and smoother procurement cycles for EU-based projects. Application: Any EU-compliant panel assembly. Feature: Dimensions and weight—170 mm width, 50 mm height, 10 mm depth; 0.611 kg. Business Impact: Compact, lightweight component that minimizes panel footprint and supports easier handling during installation. Application: Space-limited distribution panels and retrofit projects.
Get a Quick Quote for a ABB 2CPX044416R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044416R9999?
Enquire Now
FAQs
The 2CPX044416R9999 Busbar Holder is designed for ABB CombiLine modular distribution panels with a 185 mm center distance and 3P configuration. It supports up to 800 A, uses a plastic enclosure for safe insulation, and aligns with mounting instructions ZX2610-33, ensuring straightforward integration with existing components.
First verify the panel center distance is 185 mm and confirm 3P configuration. Use the fastening parts/-set included as needed, follow mounting instruction ZX2610-33 precisely, and secure the holder to the busbar assembly. Check alignment and tighten hardware to manufacturer torque specs to ensure reliable electrical contact and mechanical stability.
This busbar holder carries CE Declaration of Conformity, RoHS compliance under EU directives 2011/65/EU and amendment 2015/863, and REACH declarations. WEEE is noted as not in scope for this product. These certifications support compliant use in EU-based power distribution installations and help streamline procurement and audits.
With 800 A rated current and a compact 170x50x10 mm footprint, the holder enables high-current paths while minimizing space usage. The standardized 185 mm center distance reduces layout variability, speeding assembly and commissioning, and the lightweight plastic enclosure aids handling and reduces overall enclosure weight without compromising insulation and safety.
The robust 3P, 800 A capability paired with easy ZX2610-33 mounting translates to faster field installation and fewer call-backs for rework. Its compliance certifications reduce regulatory risk, while the compact, lightweight design lowers shipping and installation labor costs, contributing to a shorter return on investment for modular power distribution projects.
