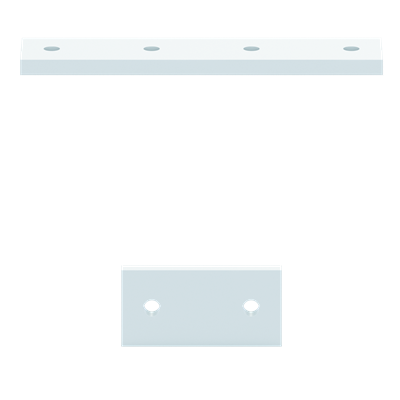

ABB 2CPX044417R9999 Busbar Holder - 800 A, 4P CombiLine
Part Number: 2CPX044417R9999
Quick Summary
ABB 2CPX044417R9999 Busbar Holder is a modular distribution component for panel-level power distribution in industrial switchgear. Design teams struggle with precise alignment, busbar center distance, and secure mounting when configuring modular panels. This part carries CE conformity, RoHS compliance with a REACH declaration, and ETIM/eClass classifications to simplify sourcing and regulatory reporting. With an 800 A rating and a compact 50 mm by 235 mm footprint, it supports scalable, safe high-current installations and faster maintenance in demanding plants. By matching CombiLine modular distribution systems, it reduces installation time and lifecycle costs while ensuring reliability.
Product Information
Extended Description
2CPX044417R9999 ABB: Busbar holder, CombiLine, Modular distribution panel not assembled, Busbar center distance: 185 mm, rated current maximum 800 A
Rated Current (In)
800 A
Model Number
Fastening parts/-set
Number of Poles
4P
Enclosure Type
Busbar holder
Material
Plastic
Color
Grey (mouse grey)
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
235 mm
Product Net Height
50 mm
Product Net Depth / Length
10 mm
Product Net Weight
0.657 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.683 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Feature: Rated current of 800 A. Benefit: Enables reliable, high-current distribution with robust busbar connections, reducing thermal rise and voltage drop in critical feeders. Application: Ideal for ABB CombiLine modular distribution panels in mains distribution and motor control centers across industrial plants. Feature: 4P design. Benefit: Provides defined, multi-pole distribution with predictable wiring layouts, simplifying harness planning and reducing cross-talk between phases. Application: Suitable for multi-phase feeders in compact panel assemblies where space is at a premium. Feature: Busbar center distance 185 mm. Benefit: Ensures compatibility with standard busbar spacings, minimizing mounting errors and rework. Application: Used when configuring modular panels for consistent alignment across multiple bays. Feature: Material and RoHS/REACH declarations. Benefit: Supports regulatory compliance and sustainable sourcing, easing audits and supplier qualification. Application: Fits EU markets with strict environmental requirements, including CE labeling and documented declarations. Feature: Compact dimensions 50 x 235 x 10 mm and weight 0.657 kg. Benefit: Enables space-saving installation, predictable handling, and straightforward replacement in crowded enclosures. Application: Ideal for retrofits and new builds in control cabinets where space is constrained. Feature: Packaging and compatibility data. Benefit: Pack-1 piece units simplify stocking and reduce wastage; ETIM/eClass classifications streamline procurement. Application: Facilitates fast sourcing of busbar holders within standardized distributor catalogs in industrial environments.
Get a Quick Quote for a ABB 2CPX044417R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044417R9999?
Enquire Now
FAQs
The 2CPX044417R9999 is designed specifically for ABB’s CombiLine modular distribution systems and busbar configurations. It matches a 185 mm center distance, supports 4-pole layouts, and integrates with standard fastening parts to ensure secure mounting. This compatibility minimizes integration risk during panel upgrades or new installations.
Key specs include a rated current of 800 A and a 4P configuration, with a busbar center distance of 185 mm. The enclosure is made of plastic in mouse grey, and the part is certified for RoHS and REACH under EU directives. Dimensions are 50 mm tall by 235 mm wide by 10 mm deep, supporting compact installations.
Yes. The component includes a RoHS declaration and a REACH declaration from ABB Striebel & John, with explicit statements about substances and compliance dates. RoHS Date is 20240903 and REACH Date is 20240902, providing traceable regulatory documentation for audits and supplier qualification.
Mounting follows ABB guidelines, including ZX2610-33 mounting instructions. The 50x235x10 mm footprint and 0.657 kg weight facilitate handling in tight spaces. Ensure busbar spacing matches 185 mm center distance, and use the appropriate fastening parts to secure a 4P arrangement within a CombiLine panel to maintain electrical integrity.
The 800 A rated, 4P busbar holder supports safe, scalable high-current distribution with a compact footprint, reducing cabinet space, installation time, and wiring complexity. Its RoHS/REACH compliance and ETIM/eClass classification streamline procurement and regulatory reporting, delivering faster time-to-value and lower lifecycle costs in power management applications.
