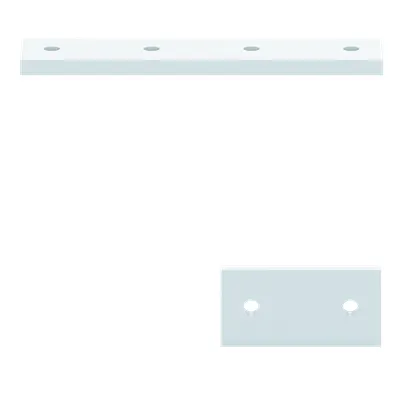

ABB 2CPX044419R9999 Busbar Holder - 800 A, 3P RoHS
Part Number: 2CPX044419R9999
Quick Summary
ABB 2CPX044419R9999 busbar holder is a modular component for ABB CombiLine distribution panels, designed to organize high-current busbar assemblies in industrial electrical cabinets. Engineers often struggle with tight panel layouts and precise mounting in dense switchgear, leading to misalignment and longer installation times. This part carries CE conformity, RoHS compliance, and REACH declarations, supporting regulatory readiness and safer operation across markets. With a rated current of 800 A and a 185 mm busbar center distance, it suits robust 3P configurations while maintaining a compact footprint. Its plastic enclosure keeps weight manageable, and the grey finish matches standard panel aesthetics. Using this holder streamlines procurement, reduces field fit issues, and supports scalable, repeatable installations in manufacturing and process environments.
Product Information
Extended Description
2CPX044419R9999 ABB: Busbar holder, CombiLine, Modular distribution panel not assembled, Busbar center distance: 185 mm, rated current maximum 800 A
Rated Current (In)
800 A
Model Number
Fastening parts/-set
Number of Poles
3P
Enclosure Type
Busbar holder
Material
Plastic
Color
Grey (mouse grey)
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
235 mm
Product Net Height
50 mm
Product Net Depth / Length
10 mm
Product Net Weight
0.657 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.683 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Rated Current of 800 A supports high-load busbar configurations in demanding industrial panels, reducing the need for parallel components and simplifying the bill of materials. This enables faster design cycles and lower total cost of ownership in ABB CombiLine systems. The Model Number aligns with fastening parts to standardize installation kits, improving BOM accuracy and stock management for procurement teams. The enclosure type is a busbar holder made from plastic in grey, delivering insulating performance with manageable weight, which eases handling during assembly and reduces labor fatigue on site. Dimensions of 235 mm width, 50 mm height, and 10 mm depth, along with a net weight of 0.657 kg, enable compact layouts in space-constrained control enclosures without compromising mechanical strength. Compliance features RoHS and REACH with CE declarations, helping you meet regulatory requirements across EU and global locations. The product ships as a not-assembled modular component, allowing precise field customization to panel width and routing needs, while mounting instructions ZX2610-33 guide correct installation and alignment.
Get a Quick Quote for a ABB 2CPX044419R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044419R9999?
Enquire Now
FAQs
The 2CPX044419R9999 is designed for ABB CombiLine modular distribution panels with a busbar center distance of 185 mm and a 3P configuration. It ships as a not-assembled component and uses the ZX2610-33 mounting instructions for proper alignment. Its dimensions (50 mm x 235 mm x 10 mm) and weight (0.657 kg) support straightforward integration into compact panel layouts, reducing assembly time and risk of misalignment during field installation.
This part is rated for 800 A and supports a 3P (three-pole) arrangement for robust, high-current distribution. The 185 mm center distance ensures compatible busbar spacing within CombiLine configurations, while the plastic enclosure provides insulation and a lighter overall assembly. These specs contribute to safer current paths and predictable performance in demanding industrial environments.
Ideal for industrial electrical cabinets and manufacturing automation environments using ABB CombiLine modular distribution panels, the 2CPX044419R9999 supports high-current busbar networks in control rooms, process plants, and data-centric facilities. Its compact footprint and standard materials make it suitable for space-constrained switchgear installations where reliable insulation, ease of maintenance, and scalable panel construction are priorities.
The busbar holder carries CE conformity and RoHS information with EU declarations of conformity, along with REACH declarations. WEEE considerations indicate it is not in scope for waste electrical and electronic equipment. These certifications help ensure regulatory compliance across EU markets and support traceability for procurement and audits in multiple locations.
Regular use of a properly rated busbar holder reduces misalignment and maintenance downtime, contributing to higher assembly accuracy and faster panel upgrades. The 800 A rating supports durable, long-life operation in high-demand installations, while the standardized mounting and documented installation instructions shorten commissioning time and improve first-pass success rates, delivering tangible cost savings over the panel’s lifecycle.
