ABB 2CPX044420R9999 Busbar Holder - CE RoHS Compliance
Part Number: 2CPX044420R9999
Quick Summary
ABB 2CPX044420R9999 is a busbar holder designed for modular distribution panels in industrial power systems. Engineers often struggle with securing large current busbars in tight spaces while keeping installation and maintenance straightforward. This solution carries CE conformity, RoHS compliance, and REACH declarations to support regulatory maturity and downstream safety. It aligns with ABB CombiLine workflows, offering reliable mounting, clear documentation, and a compact footprint that fits in restricted panel spaces. By combining robust performance with easy integration, it delivers faster deployment, reduced field rework, and scalable power distribution for growing facilities.
Product Information
Extended Description

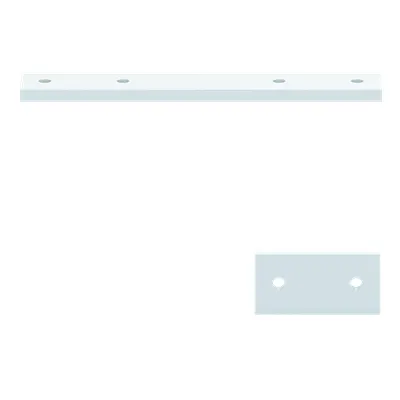

2CPX044420R9999 ABB: Busbar holder, CombiLine, Modular distribution panel not assembled, Busbar center distance: 185 mm, rated current maximum 800 A
Rated Current (In)
800 A
Model Number
Fastening parts/-set
Number of Poles
4P
Enclosure Type
Busbar holder
Material
Plastic
Color
Grey (mouse grey)
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
300 mm
Product Net Height
50 mm
Product Net Depth / Length
10 mm
Product Net Weight
0.839 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.873 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Feature → Business Impact → Application: 800 A rated current with 4P configuration supports high-power busbar circuits, enabling safe, dense layouts and reducing the number of parallel components required in a given panel. This directly lowers installation time and ongoing thermal management costs in data centers and manufacturing lines. Application: modular distribution panels in ABB CombiLine systems where space is at a premium. Feature → Business Impact → Application: Center distance of 185 mm ensures consistent spacing for mechanical stability and predictable airflow, improving serviceability and reducing risk during retrofits. Application: expansion projects and new builds needing repeatable layouts. Feature → Business Impact → Application: Plastic enclosure and grey finish offer lightweight handling and straightforward installation without sacrificing durability, accelerating assembly at the factory and on site. Application: OEM panel builds and panel shop fabrication. Feature → Business Impact → Application: RoHS and REACH compliance plus CE declaration reduce compliance overhead and supplier risk, enabling traceable manufacturing and smoother audits. Application: European markets with strict environmental and safety standards. Feature → Business Impact → Application: Mounting instructions ZX2610-33 provide clear, repeatable guidance that minimizes field errors, improves first-time right assembly, and supports technician training. Application: service teams and installation partners. Feature → Business Impact → Application: Dimensional footprint of 300 mm W × 50 mm H × 10 mm D and a net weight of 0.839 kg enable compact integration in crowded panels, reducing enclosure size requirements and enabling more efficient heat management in crowded switchgear. Application: compact modular assemblies and retrofits in existing ABB ecosystems.
Get a Quick Quote for a ABB 2CPX044420R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044420R9999?
Enquire Now
FAQs
Install the 2CPX044420R9999 busbar holder by aligning the 4P mounting points with the CombiLine busbar assembly and inserting it into the panel frame per ZX2610-33 mounting instructions. Ensure the busbars are properly seated at the 185 mm center distance, tighten fastening parts, and verify electrical clearance. This approach minimizes vibration and simplifies future maintenance.
The component is rated for 800 A with a 4P configuration. This makes it suitable for high-power distribution applications where multiple poles share the load, while maintaining compact dimensions and straightforward assembly within ABB CombiLine panels.
Yes. With a 185 mm busbar center distance and a compact footprint (300 mm W x 50 mm H x 10 mm D) plus lightweight plastic construction, it enables denser layouts without compromising mounting stability or service access. Compatible with ABB CombiLine components, it supports scalable growth and streamlined installation practices.
The busbar holder carries CE Declaration of Conformity, RoHS compliance, and REACH declarations, ensuring regulatory alignment within EU markets. WEEE classification notes the product is not in the WEEE scope, helping with end-of-life planning and waste management.
The design emphasizes easy installation and serviceability, reducing field labor time and potential rework. Its compliant materials and documented mounting guidance lower risk during audits and upgrades, while the compact form factor frees enclosure space for additional components, enhancing overall system reliability and reducing total cost of ownership.
