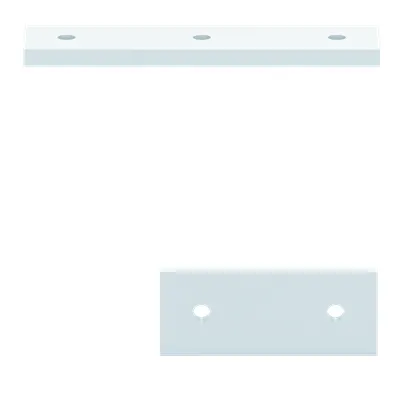

ABB 2CPX044422R9999 Busbar Holder - 1000 A, 3P, CombiLine
Part Number: 2CPX044422R9999
Quick Summary
ABB 2CPX044422R9999 busbar holder safely manages high-current distribution within modular CombiLine panel systems. It addresses space constraints and wiring clutter by providing a compact, ready-to-install mounting solution for complex busbar layouts. The solution aligns with CE, RoHS, and REACH requirements, supported by EU Declarations of Conformity and WEEE considerations to streamline regulatory compliance. With a 50 x 210 x 10 mm footprint, 185 mm busbar center distance, and 3P configuration, it delivers predictable fit and fast installation. By reducing mounting time and ensuring reliable connectivity, it supports improved uptime, safer maintenance, and lower total cost of ownership for industrial power distribution projects.
Product Information
Extended Description
2CPX044422R9999 ABB: Busbar holder, CombiLine, Modular distribution panel not assembled, Busbar center distance: 185 mm, rated current maximum 1000 A
Rated Current (In)
1000 A
Model Number
Fastening parts/-set
Number of Poles
3P
Enclosure Type
Busbar holder
Material
Plastic
Color
Grey (mouse grey)
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
210 mm
Product Net Height
50 mm
Product Net Depth / Length
10 mm
Product Net Weight
0.657 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.683 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
High-current capability up to 1000 A in a 3P configuration enables scalable power distribution across demanding industrial panels, reducing the need for multiple smaller components and lowering installation time. This leads to tangible cost savings and improved system reliability, especially in 3-phase power architectures used in manufacturing lines and data-center infrastructure. The 50 x 210 x 10 mm footprint and a center distance of 185 mm support predictable mounting within modular CombiLine distribution panels, enabling faster engineering audits and easier field upgrades. Constructed from plastic with a grey finish, the part integrates cleanly into control enclosures while meeting RoHS and REACH requirements, simplifying regulatory consolidation for EU deployments. The included ZX2610-33 mounting guidance and wide compatibility with ABB CombiLine components reduce procurement risk and support smoother assembly workflows. These features collectively translate to shorter project lead times, easier maintenance, and a lower total cost of ownership for power distribution systems.
Get a Quick Quote for a ABB 2CPX044422R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044422R9999?
Enquire Now
FAQs
The ABB 2CPX044422R9999 busbar holder is designed for straightforward mounting within CombiLine modular panels. Use the ZX2610-33 mounting instructions to align the holder with a 185 mm center distance, ensuring a 3P configuration and proper locking. The process minimizes misalignment and simplifies future add-ons or replacements, reducing commissioning time andoccupational risk during panel assembly.
Key specifications include a rated current of 1000 A, three poles (3P), and a busbar center distance of 185 mm. The enclosure type is a busbar holder made of plastic with a grey finish, designed for robust, high-current distribution in modular panels. These specs support reliable 3-phase distribution while maintaining compact panel footprint.
Yes. The 3P configuration, high current rating, and CombiLine compatibility make it ideal for 3-phase modular distribution in industrial switchgear and panel boards. Its compact form factor and documented mounting guidance help engineers standardize busbar assemblies across multiple lines, improving consistency and maintenance efficiency.
The product carries CE declarations of conformity and RoHS/REACH compliance. It also notes WEEE considerations and related material declarations. This helps ensure EU market readiness and regulatory alignment for environmental and safety standards in industrial installations.
By standardizing a single high-current busbar holder, you reduce part variety and simplify stocking. The 50 x 210 x 10 mm footprint and 185 mm center distance enable faster upgrades and easier servicing. CE, RoHS, and REACH compliance minimize regulatory risk, while the inclusion of installation guidance supports quicker commissioning and lower total cost of ownership over the system lifecycle.
