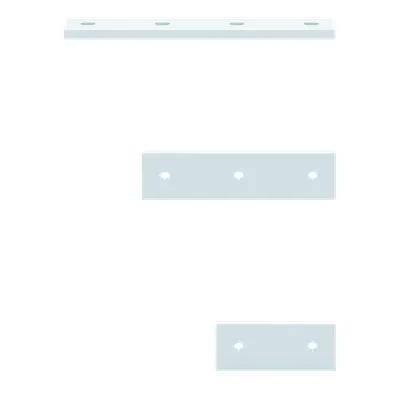

ABB 2CPX044424R9999 Busbar Holder - CE Certified
Part Number: 2CPX044424R9999
Quick Summary
ABB 2CPX044424R9999 busbar holder securely mounts busbars in CombiLine modular distribution panels. This solves installation clutter, misalignment, and space constraints common in compact control cabinets. It is CE certified, RoHS compliant, and REACH declared, aligning with current regulatory and sustainability requirements. The combination of 4P configuration, 1000 A rating, and precise center distance supports high-demand panel assemblies. From design to field installation, this part delivers reliability, faster commissioning, and lifecycle cost reductions. Industries such as chemical processing, packaging lines, and industrial automation rely on CombiLine for modular distribution. Its compact 50 mm x 290 mm x 10 mm footprint helps keep panel spaces organized and accessible for maintenance.
Product Information
Extended Description
2CPX044424R9999 ABB: Busbar holder, CombiLine, Modular distribution panel not assembled, Busbar center distance: 185 mm, rated current maximum 1000 A
Rated Current (In)
1000 A
Model Number
Fastening parts/-set
Number of Poles
4P
Enclosure Type
Busbar holder
Material
Plastic
Color
Grey (mouse grey)
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
290 mm
Product Net Height
50 mm
Product Net Depth / Length
10 mm
Product Net Weight
0.996 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.036 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Feature: High current rating up to 1000 A in a 4P arrangement. Business Impact: Enables robust power distribution within demanding automation cabinets, reducing the need for additional components and simplifying routing. Application: Suitable for high-capacity CombiLine panels in metal enclosures where space is at a premium. The design supports reliable operation in heavy-load panels with predictable thermal and electrical performance. Feature: Modular busbar holder for a modular distribution panel system. Business Impact: Facilitates rapid assembly and scalable configurations, cutting commissioning time and total installed cost. Application: Ideal for scalable control cabinets in manufacturing lines that frequently reconfigure to changing equipment. Feature: Material is plastic with a grey finish. Business Impact: Lightweight, non-conductive housing improves safety and reduces handling effort while maintaining compatibility with standard enclosure aesthetics. Application: Widely used in control rooms and cabinet interiors requiring safe, easy-to-handle components. Feature: Busbar center distance of 185 mm. Business Impact: Standardized spacing simplifies design validation and reduces engineering overhead when integrating multiple busbars. Application: Fits CombiLine layouts where precise alignment is critical for connector reliability. Feature: RoHS and REACH compliance with declared status. Business Impact: Lowers regulatory risk and supports sustainability reporting across supply chains. Application: Required in markets with strict material restrictions for electrical assemblies. Feature: Installation documentation ZX2610-33 provided. Business Impact: Accelerates mounting and field servicing with clear, consistent guidance. Application: Advisory for installers coordinating with other components in CombiLine panels. Feature: WEEE not in scope and EU CE conformity. Business Impact: Simplifies end-of-life planning and regulatory alignment with European directives. Application: Helps asset owners document compliance during audits and refurbishments.
Get a Quick Quote for a ABB 2CPX044424R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044424R9999?
Enquire Now
FAQs
Follow the ZX2610-33 mounting instructions. Ensure correct alignment with the 185 mm center distance and 4P busbars, then secure with the designated fastening parts to achieve a stable, compliant installation.
Designed for CombiLine modular distribution panels, it supports high-current power distribution in industrial cabinets, switchgear, and control panels requiring reliable 1000 A capacity with precise busbar spacing.
Rated current is 1000 A, with a 4P configuration. Enclosure type is a busbar holder made of plastic, color grey, and it uses a 185 mm center distance between busbars for standardized layouts.
CE Declaration of Conformity for Distribution Panel System CombiLine N, RoHS compliance per EU Directive 2011/65/EU and Amendment 2015/863, REACH declaration, and WEEE status indicating not in scope.
Its modular, lightweight plastic construction, along with clear mounting guidance, reduces installation time and field rework, while regulatory compliance minimizes risk during audits and end-of-life planning.
