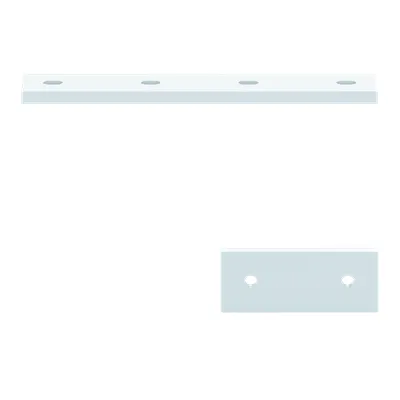

ABB 2CPX044425R9999 Busbar Holder - 1000 A, 3P
Part Number: 2CPX044425R9999
Quick Summary
ABB 2CPX044425R9999 Busbar Holder enables high-current distribution in modular CombiLine panels. In compact switchgear, engineers struggle to safely mount large conductors while preserving space and serviceability. This part carries CE conformity, RoHS compliance, and REACH declarations to support regulatory audits and sustainability goals. Designed for 1000 A, 3P systems with a busbar center distance of 185 mm, it integrates with ABB CombiLine and standard modular panels to improve installation efficiency, safety, and lifecycle value.
Product Information
Extended Description
2CPX044425R9999 ABB: Busbar holder, CombiLine, Modular distribution panel not assembled, Busbar center distance: 185 mm, rated current maximum 1000 A
Rated Current (In)
1000 A
Model Number
Fastening parts/-set
Number of Poles
3P
Enclosure Type
Busbar holder
Material
Plastic
Color
Grey (mouse grey)
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
290 mm
Product Net Height
50 mm
Product Net Depth / Length
10 mm
Product Net Weight
0.85 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.884 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Feature: Rated current up to 1000 A. Business Impact: Enables a compact, high-capacity power path with fewer components. Application: Perfect for 3P CombiLine modular distribution panels in heavy-duty manufacturing. The result is improved reliability and reduced wiring complexity. Feature: Busbar center distance 185 mm. Business Impact: Enables precise alignment and uniform current sharing, minimizing heat and vibration. Application: Safe, scalable integration with ABB CombiLine and compatible modular panels. Feature: Plastic enclosure and grey color. Business Impact: Provides insulating protection and durable aesthetics in industrial enclosures. Application: Suitable for enclosed control panels in harsh environments. Feature: RoHS and REACH compliance. Business Impact: Simplifies regulatory audits and sustainability reporting. Application: Supports EU directives and supplier standards across machinery. Feature: Mounting instructions ZX2610-33 and fastening parts. Business Impact: Reduces installation time and minimizes mounting errors. Application: Streamlines field assembly by service teams. Feature: Compact dimensions and weight (290x50x10 mm; 0.85 kg). Business Impact: Easier handling, reduced panel footprint, faster retrofits. Application: Ideal for retrofit projects and space-constrained switchgear.
Get a Quick Quote for a ABB 2CPX044425R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044425R9999?
Enquire Now
FAQs
The unit uses a modular busbar holder design compatible with CombiLine panels and includes fastening parts as per the model notes. Refer to mounting instruction ZX2610-33 for step-by-step installation to ensure correct alignment and secure fixing in 3P configurations.
Yes. It is designed for CombiLine modular distribution systems with a 185 mm busbar center distance and a 1000 A, 3P rating, simplifying integration into existing ABB or compatible modular panels.
The busbar holder is rated for 1000 A and configured for 3 poles (3P), suitable for high-current, three-phase power distribution in industrial control gear.
It carries CE conformity, RoHS compliance (EU Directive 2011/65/EU and 2015/863), and a REACH declaration, with WEEE categorization indicating the product is not within WEEE scope.
Ensure correct mounting per ZX2610-33, use the included fastening parts, and observe the 185 mm busbar center distance for proper current sharing. Its rugged plastic housing insulates conductors, reducing risk and enabling quicker commissioning, which lowers lifecycle costs.
