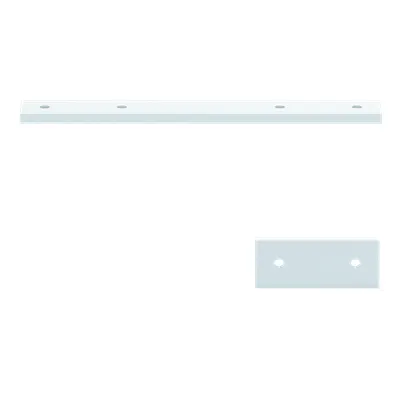

ABB 2CPX044426R9999 Power Busbar Holder - CombiLine, 1000 A
Part Number: 2CPX044426R9999
Quick Summary
ABB 2CPX044426R9999 Power Busbar Holder is a modular distribution accessory for high-current industrial power panels. It reduces assembly errors and downtime when integrating large busbar systems in manufacturing environments. Certified with CE conformity, RoHS compliance, and REACH declarations, it helps meet European regulatory requirements. With a 50x374x10 mm footprint and 1000 A rating, it supports scalable, compliant power distribution while enabling faster installation. Designed for modular distribution panels not assembled, it simplifies field tailoring and future expansions. Its plastic enclosure and grey finish resist wear and help with cable management visibility. This combination delivers faster ROI through reduced installation time and lower maintenance costs.
Product Information
Extended Description
2CPX044426R9999 ABB: Busbar holder, CombiLine, Modular distribution panel not assembled, Busbar center distance: 185 mm, rated current maximum 1000 A
Rated Current (In)
1000 A
Model Number
Fastening parts/-set
Number of Poles
4P
Enclosure Type
Busbar holder
Material
Plastic
Color
Grey (mouse grey)
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
374 mm
Product Net Height
50 mm
Product Net Depth / Length
10 mm
Product Net Weight
0.909 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.945 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Feature → Rated current is 1000 A with a 4P configuration. Business impact → This high capacity allows a single panel to handle substantial loads, reducing the need for parallel busbars and saving cabinet space. Application → Suitable for motor control centers and high-load feeders in manufacturing facilities. Feature → Compatibility with CombiLine modular distribution panels in their unassembled state. Business impact → Accelerates on-site assembly and simplifies future expansions, cutting project lead times. Application → Ideal for new builds and refurbishments where modularity and scalability are prioritized. Feature → Center distance between busbars is 185 mm. Business impact → Ensures precise alignment and consistent current paths, minimizing resistance hotspots and thermal drift. Application → Used in large busbar networks requiring defined spacing in control panels and feeder cabinets. Feature → Lightweight plastic enclosure, grey color, 50 mm x 374 mm x 10 mm footprint, weight 0.909 kg. Business impact → Easier handling during installation, lower logistics costs, and improved insulation characteristics. Application → Fits compact control cabinets and modular panels where space optimization is critical. Feature → Compliance and documentation: EU RoHS date 20240903; REACH declaration; CE Declaration of Conformity; WEEE not in scope; mounting instruction ZX2610-33. Business impact → Regulatory compliance, documented mounting procedures reduce risk and support audit readiness. Application → European manufacturing sites requiring formal declarations and approved mounting guides. Feature → ETIM 8/9 EC001896 for distributor assembly busbars; eClass 11.0 27400610; CMRT; WEEE category not in scope. Business impact → Improves product cataloging, enables accurate procurement filtering, and ensures compatibility with sourcing systems. Application → Used by engineers and buyers in supplier catalogs across regional deployments.
Get a Quick Quote for a ABB 2CPX044426R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044426R9999?
Enquire Now
FAQs
The 2CPX044426R9999 busbar holder is designed for CombiLine modular panels and follows the ZX2610-33 mounting instructions. Start by verifying enclosure clearance, align the holder with the 185 mm busbar center distance, then secure with the fastening parts provided. Ensure proper insulation and torque settings per the installation guide to maintain 1000 A current capacity safely.
This device is rated for 1000 A and configured as a 4-pole (4P) busbar holder. This combination supports high-load distribution within a single panel, reducing the need for parallel busbar arrangements and saving space in demanding industrial environments.
Yes. The product carries RoHS information with an EU Declaration of Conformity, and a REACH declaration indicating compliance. The RoHS date is 2024-09-03, and the REACH information confirms no substances above 0.1 mass percentage, aligning with European chemical safety requirements.
ETIM 8 and ETIM 9 classifications are EC001896 for distributor assembly busbars, and the eClass listing is V11.0 with code 27400610. These classifications enable accurate cataloging in procurement systems and ensure compatibility with distributor catalogs and sourcing workflows.
The holder is designed for CombiLine modular distribution panels, not assembled, with a center distance of 185 mm between busbars. It ships with ZX2610-33 mounting instructions and supports rapid field upgrades or expansions. Its 50x374x10 mm footprint and 0.909 kg weight facilitate compact cabinet layouts and straightforward mounting in industrial environments.
