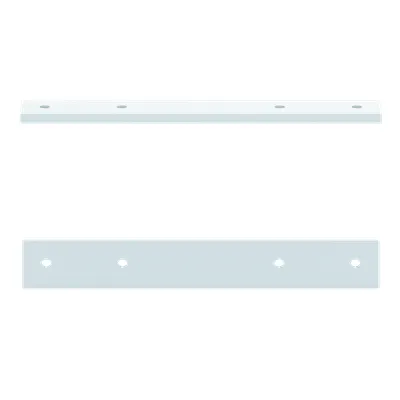

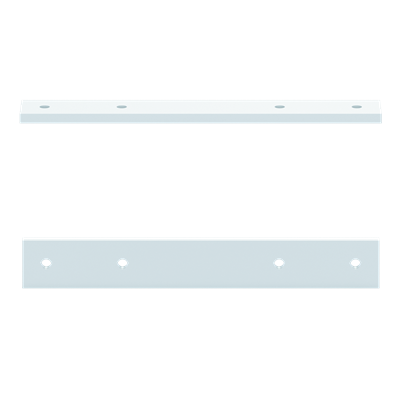

ABB 2CPX044427R9999 Busbar Holder - CE Compliance
Part Number: 2CPX044427R9999
Quick Summary
ABB 2CPX044427R9999 Busbar Holder enables high-current modular distribution within industrial control panels. Engineers face ongoing challenges from tight spaces and complex wiring when expanding busbar networks. This component carries CE conformity, RoHS compliance, and REACH declarations, ensuring regulatory alignment across Europe. By leveraging the CombiLine system, it delivers fast assembly, consistent center distance of 185 mm, and reliable current paths for up to 1000 A. For OEMs and integrators, the solution reduces field wiring errors and inventory complexity while improving safety, serviceability, and long-term cost of ownership in industrial automation applications. With 4 poles and a robust plastic enclosure, it supports scalable panel builds and easy upgrade paths for growing systems.
Product Information
Extended Description
2CPX044427R9999 ABB: Busbar holder, CombiLine, Modular distribution panel not assembled, Busbar center distance: 185 mm, rated current maximum 1000 A
Rated Current (In)
1000 A
Model Number
Fastening parts/-set
Number of Poles
4P
Enclosure Type
Busbar holder
Material
Plastic
Color
Grey (mouse grey)
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
374 mm
Product Net Height
50 mm
Product Net Depth / Length
10 mm
Product Net Weight
1.079 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.122 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2610-33
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Feature: Rated current up to 1000 A and a 4P configuration. Business Impact: This enables high‑current distribution with minimal busbar congestion, improving thermal performance and reliability in dense switchgear. Application: Use in CombiLine modular distribution panels where space is at a premium and current paths must be robust across multi-bus layouts. This alignment also minimizes misalignment during thermal cycling. This reduces maintenance events and improves uptime. Feature: Busbar center distance 185 mm and enclosure type Busbar holder. Business Impact: Ensures precise alignment during assembly, which minimizes rework and speeds up commissioning. Application: Use when integrating multiple busbars into compact, scalable panel architectures within ABB's CombiLine ecosystem. It remains compatible with standard panel frames and mounting rails, simplifying upgrade paths. Enhanced torque resistance and clean wiring reduce wear. Feature: Busbar width 374 mm, height 50 mm, depth 10 mm with a lightweight plastic enclosure. Business Impact: Simplifies handling, reduces overall panel weight, and lowers logistics costs while maintaining mechanical integrity. Application: Ideal for indoor automation cabinets where quick installation and long-term durability matter. Feature: RoHS information and REACH declarations with clear dates; WEEE category. Business Impact: Eases regulatory audits and sustainability reporting. Application: Supports European compliance and supplier qualification processes. Feature: Certifications and installation guidance: CE Declaration, ZX2610-33 mounting instructions; ETIM and eClass classifications. Business Impact: Accelerates procurement and on-site installation, reducing risk during audits. Application: Suitable for engineers performing panel builds in automation environments. Feature: Product dimensions and weight: 374 mm width, 50 mm height, 10 mm depth; 1.079 kg. Business Impact: Enables precise mechanical planning and enclosure design. Application: Improves BOM accuracy, packaging, and shipping calculations for modular distribution systems.
Get a Quick Quote for a ABB 2CPX044427R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX044427R9999?
Enquire Now
FAQs
Installation starts with confirming the 185 mm center distance and 4P configuration. Use the ZX2610-33 mounting instructions to position the holder securely within the distribution panel frame, ensuring alignment with busbars. Verify electrical connections after mechanical mounting, then run a light current test to confirm proper current paths before commissioning.
The unit is rated for up to 1000 A with a 4P configuration. The busbar center distance is 185 mm, and the enclosure is a plastic busbar holder designed for modular distribution. This combination supports high-current applications while maintaining mechanical compatibility with CombiLine components.
Yes. With a 1000 A rating and 4 poles, the holder is designed for robust, scalable distribution in industrial automation and process industries. Its 185 mm center distance and CombiLine compatibility enable reliable current paths across modular panels, reducing thermal issues and enabling predictable performance in demanding environments.
The product carries a CE declaration and is RoHS and REACH compliant, with explicit declarations and dates. WEEE categorization places it outside certain scopes. ETIM and eClass classifications are EC001896 and V11.0 27400610, respectively, supporting standardized data for procurement and ERP systems.
Regular maintenance is simplified by its lightweight plastic enclosure and precise alignment features, reducing field rework. CE, RoHS, and REACH compliance streamline audits and recalls. The modular design with documented mounting instructions supports quicker upgrades and standardized sourcing, improving uptime and total cost of ownership across panel fleets.
