2CPX044463R9999
Part Number: 2CPX044463R9999
Product Information
Extended Description

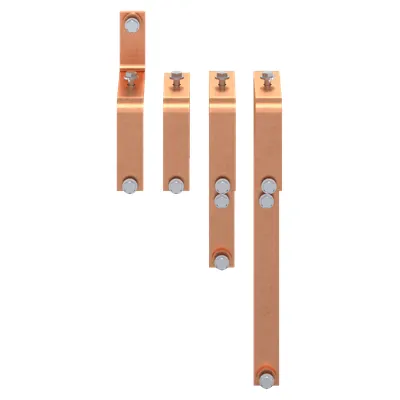

2CPX044463R9999 ABB: Copper busbar, CombiLine, mounted in cabinet, rated current maximum 800 A
Rated Current (In)
800 A
Model Number
Flat
Number of Poles
4P
Enclosure Type
Copper busbar
Surface Finishing
Untreated
Accessories Available
Yes
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
389.22 mm
Product Net Height
40 mm
Product Net Depth / Length
10 mm
Product Net Weight
9.243 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
9.613 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction ZX2911-33
ETIM 8
EC001522 - Busbar
ETIM 9
EC001522 - Busbar
eClass
V11.0 : 27370303
Object Classification Code
U
Standards
DIN 43673-1
