2CPX045725R9999
Part Number: 2CPX045725R9999
Product Information
Extended Description

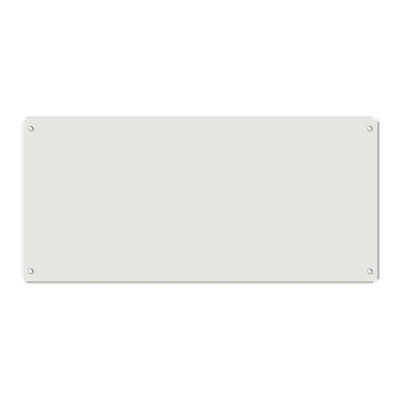

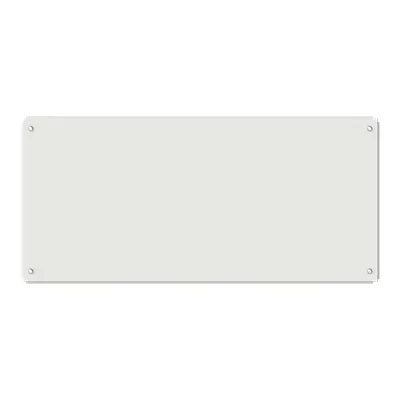

2CPX045725R9999 ABB: Top plate, series TriLine, Modular distribution panel not assembled, Powder-coated, in RAL 7035, dimensions in mm (H x W x D): 12 x 1359 x 625, panel width 5, cabinet depth 6
Suitable For
5/10RG6|5/8RG6
Model Number
Blind
Enclosure Type
Top plate
Surface Finishing
Powder-coated
Material
Steel
Accessories Available
No
DIN Place Units
0
Meter Boards
0
Remarks
ETIM
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity TriLine-C cabinet system
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
1359 mm
Product Net Height
12 mm
Product Net Depth / Length
625 mm
Section Width
5
Product Net Weight
14.628 kg
Dimension Diagram
Technical Drawing - TriLine C - Top plates
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
15.213 kg
Declaration of Conformity - CE
EU Declaration of Conformity TriLine-C cabinet system
Instructions and Manuals
Mounting instruction TriLine-C
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC000744 - Top-/floor element (enclosure/cabinet)
ETIM 9
EC000744 - Top-/floor element (enclosure/cabinet)
eClass
V11.1 : 27182405
Object Classification Code
U
