2CPX045820R9999
Part Number: 2CPX045820R9999
Product Information
Extended Description

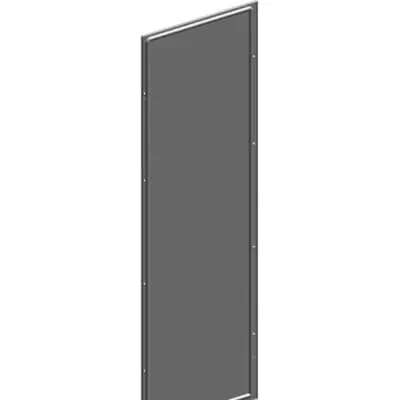

2CPX045820R9999 ABB: Top plate, series TriLine, Modular distribution panel not assembled, Powder-coated, in RAL 7035, Grid unit 12 GU, Overall height 8
Sub-Function 3
Side panel
Suitable For
1/8R3|1/8RG3|2/8R3|2/8RG3|3/8R3|3/8RG3|4/8R3|4/8RG3|5/8R3|5/8RG3
Number of Panel Heights
12
Enclosure Type
Side wall
Enclosure Type of Height
8
Surface Finishing
Powder-coated
Material
Steel
Accessories Available
No
DIN Place Units
0
Meter Boards
0
RAL Number
RAL 7035 - Light Grey
Color
Light grey
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
325 mm
Product Net Height
1913 mm
Product Net Depth / Length
325 mm
Product Net Weight
16.413 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
17.07 kg
E-Number (Norway)
2405135
Instructions and Manuals
Mounting instruction RSW..
ETIM 8
EC002524 - Side-/back panel (enclosure/cabinet)
ETIM 9
EC002524 - Side-/back panel (enclosure/cabinet)
eClass
V11.1 : 27182101
Object Classification Code
U
