2CPX045825R9999
Part Number: 2CPX045825R9999
Product Information
Extended Description

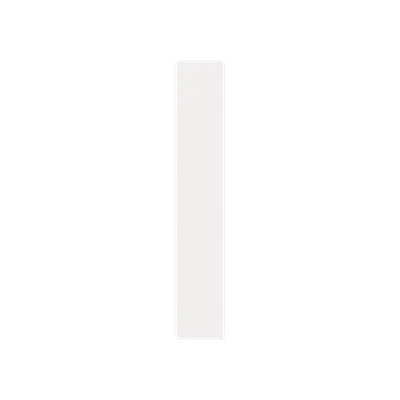

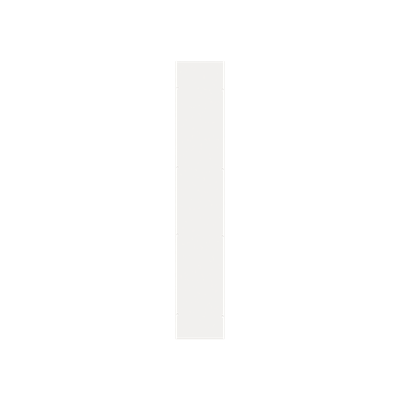

2CPX045825R9999 ABB: Side wall, series TriLine, Modular distribution panel not assembled, Powder-coated, in RAL 7035, Grid unit 14 GU, Overall height 10
Sub-Function 3
Side panel
Suitable For
1/10R4|1/10RG4|2/10R4|2/10RG4|3/10R4|3/10RG4|4/10R4|4/10RG4|5/10R4|5/10RG4
Number of Panel Heights
14
Enclosure Type
Side wall
Enclosure Type of Height
10
Surface Finishing
Powder-coated
Material
Steel
Accessories Available
No
DIN Place Units
0
Meter Boards
0
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity TriLine-C cabinet system
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
425 mm
Product Net Height
2213 mm
Product Net Depth / Length
425 mm
Product Net Weight
23.143 kg
Dimension Diagram
Technical Drawing - TriLine - side panels
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
24.069 kg
Declaration of Conformity - CE
EU Declaration of Conformity TriLine-C cabinet system
Instructions and Manuals
Mounting instruction RSW..
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002524 - Side-/back panel (enclosure/cabinet)
ETIM 9
EC002524 - Side-/back panel (enclosure/cabinet)
eClass
V11.1 : 27182101
Object Classification Code
U
